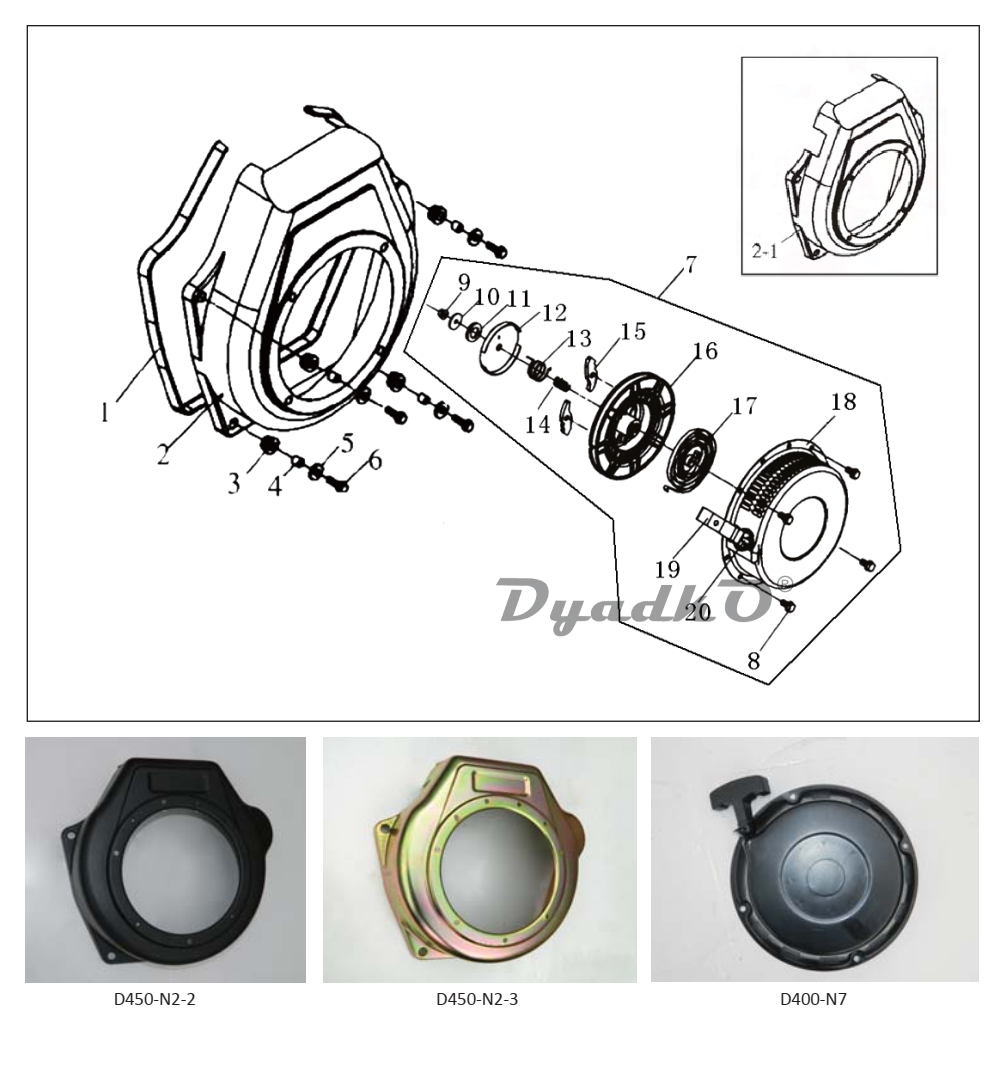

Схема (деталировка) генераторы дизельные HYUNDAI DHY 6000, DHY 6000 LE, DHY 6000 LE-3, DHY 6000 LE-T, DHY 6000 SE, DHY 6000 SE-3, DHY 6000SE-T, DHY 8500, DHY 8500 LE, DHY 8500 LE-3, DHY 8500 LE-T, DHY 8500 SE, DHY 8500 SE-3, DHY 8500 SE-T ENGINE - FAN COVER D400/450/500-N. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Cushion
2	Fan cover weldment ASSY（open frame type）
2-1	Fan cover weldment ASSY（soundproof type）
2-2	Fan cover weldment ASSY（open frame type)
2-3	Fan cover weldment ASSY（soundproof type)
2-4	Fan cover weldment ASSY（open frame type
2-5	Fan cover weldment ASSY（soundproof type)
3	Cushion sheath
4	Sheath
5	Flat washer Ф6
6	Bolt M6×22
7	Handle starter ASSY
8	Bolt M6×8
9	Flange nut M8
10	Flat washer Ф8
11	Friction plate
12	Starting claw pressure plate
13	Torsion spring
14	Compression spring
15	Starting claw
16	Start pull dish
17	Spiral spring
18	Hand plate shell
19	Starter handle
20	Starting leash
