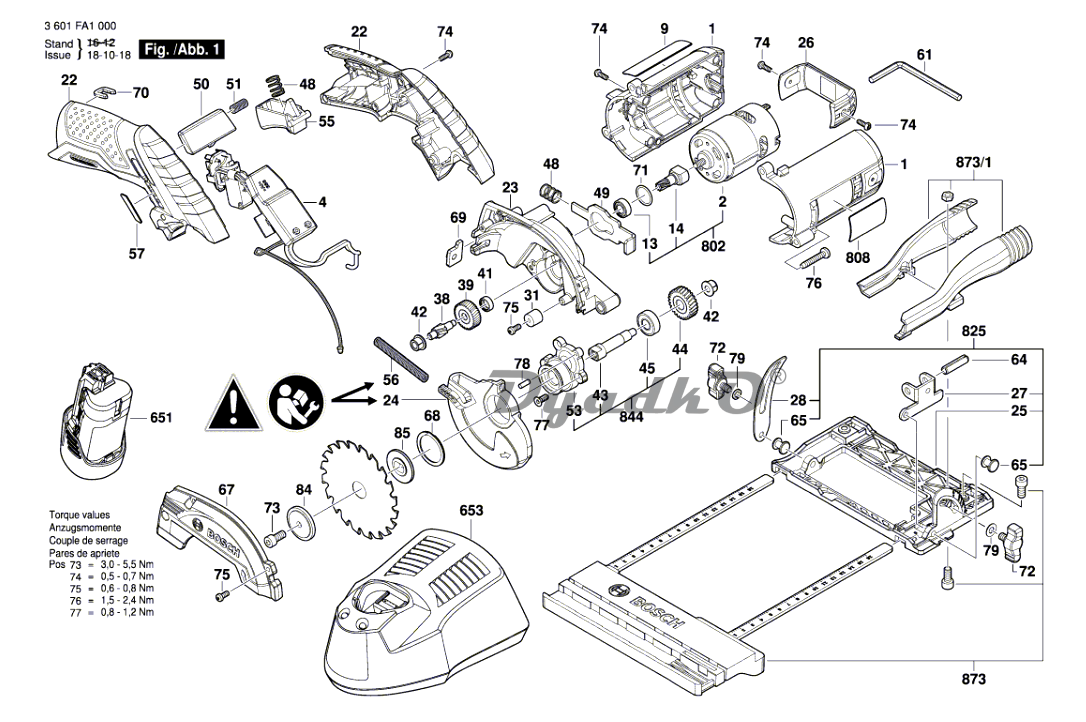

Схема BOSCH GKS 10,8 V-LI (3601FA1000)

1	Motor Housing
2	DC motor
4	Electronics Module
9	Manufacturer's nameplate
13	groove ball bearing
14	Gear
22	Handle
23	Upper guard
24	Lower guard
25	Base Plate
26	End cap
27	Hinge Bracket
28	Support bracket
31	Bumper
38	Gear Shaft
39	Gear
41	groove ball bearing
42	Bushing
43	Shaft
44	Gear
45	Ball Bearing
48	Compression Spring
49	Guide Bracket
50	Locking Slide
51	Compression Spring
53	Bearing Flange
55	Trigger
56	Extension Spring
57	Sticker
61	Hexagon Socket Wrench
64	Slotted Spring Pin
65	Rivet
67	Protection cover
68	Retaining ring
69	Nut
70	Clip
71	O-Ring 14,0x1,3 MM
72	Wing Screw BLACK
73	Hex Socket Head Cap Screw
74	Torx Oval-Head Screw 3x10
75	Thread-forming tap. Screw
76	Thread-forming tap. Screw
77	Thread-forming tap. Screw
78	Bearing bolt
79	Plain Washer
84	Washer
85	Retaining Washer
651	Battery Pack GBA 12V 3,0 Ah Li
651	Battery Pack GBA 12V 2.0Ah Li SCM
653	Fast Charger UK AL1130CV 230V/12V/3A
653	Fast Charger EU GAL 1230 CV 230/12V
802	Motor assembly
808	Nameplate
825	Baseplate complete
844	Spindle Assembly
873	Parallel-Guide
873/1	Suction Nozzle
