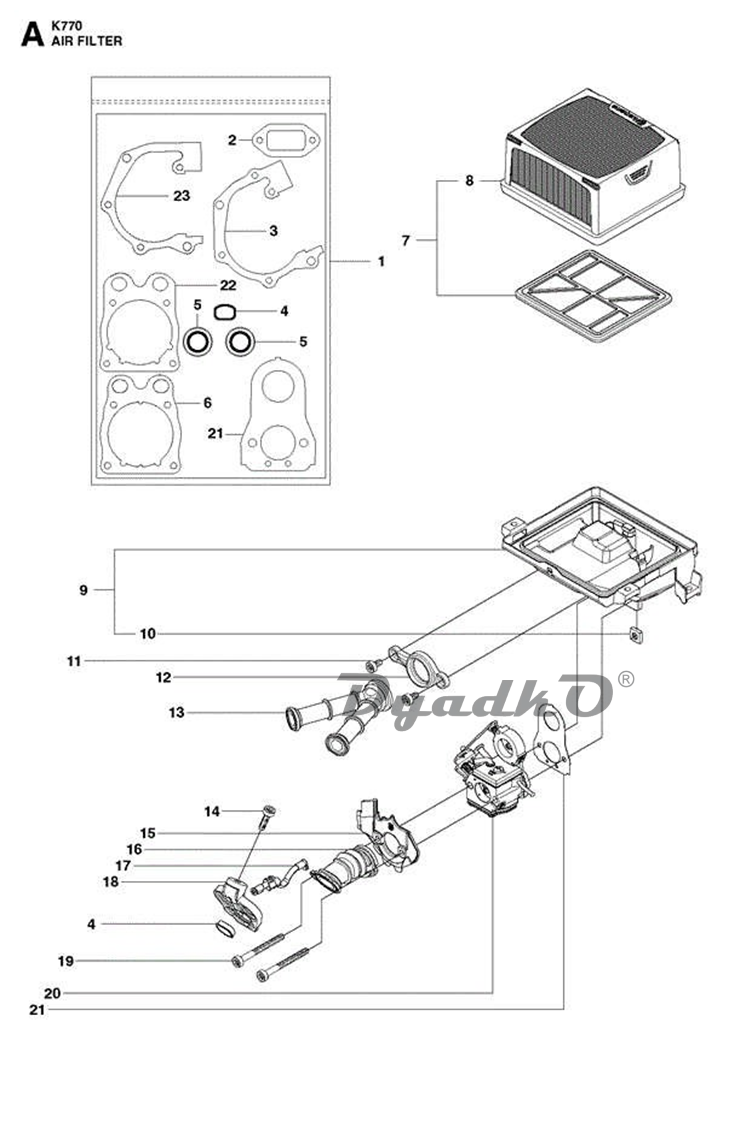

| 1 | GASKET KIT incl. 2 - 6, 21 - 23 |
| 2 | GASKET |
| 3 | GASKET |
| 4 | INSERT |
| 5 | SEALING RING Blue |
| 6 | GASKET |
| 7 | AIR FILTER ASSY Incl. 8 |
| 8 | AIR FILTER ASSY |
| 9 | CARBURETTOR BRACKET Incl. 10 |
| 10 | SQUARE NUT |
| 11 | SCREW ITXSCM |
| 12 | FLANGE INLET PIPE |
| 13 | INLET PIPE |
| 14 | SCREW ITXSCM |
| 15 | HEAT SHIELD |
| 16 | INLET PIPE |
| 17 | IMPULSE HOSE |
| 18 | PLATE |
| 19 | SCREW ITXSCM |
| 20 | CARBURETTOR Zama C3-EL53 |
| 21 | CYLINDER |
| 22 | CYLINDER |
| 23 | GASKET |
