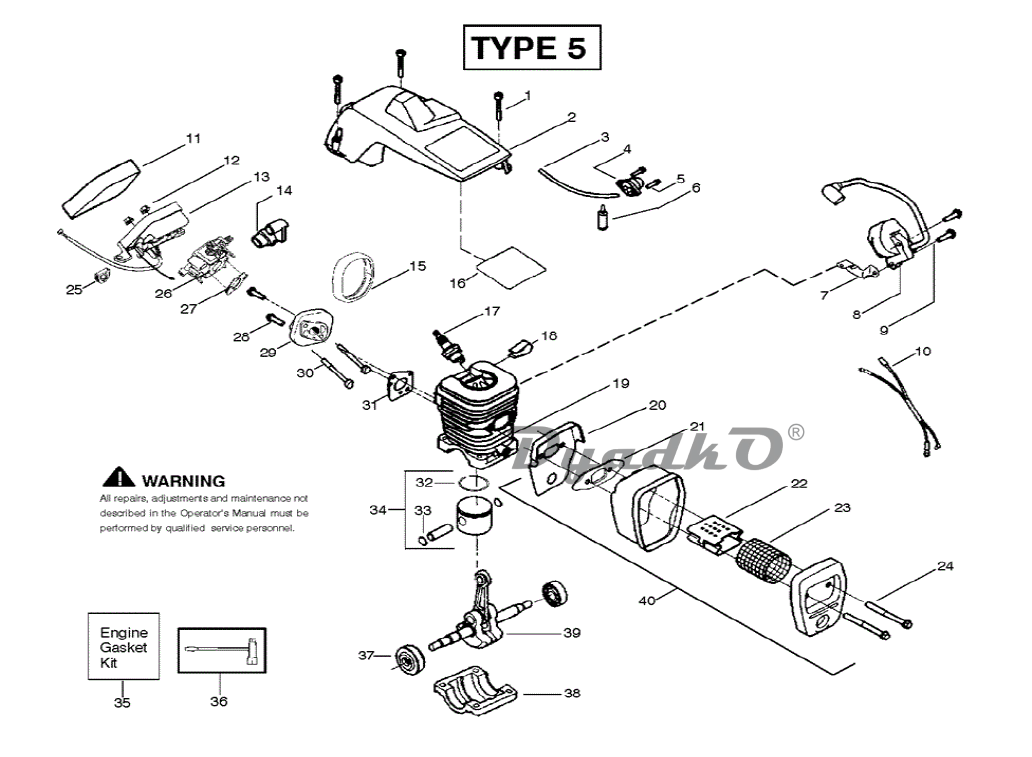

| 1 | SCREW |
| 2 | CYLINDER COVER |
| 3 | HOSE |
| 4 | PURGE |
| 5 | SCREW |
| 6 | FILTER |
| 7 | PLATE |
| 8 | IGNITION MODULE |
| 9 | SCREW |
| 10 | ASSEMBLY |
| 11 | AIR FILTER |
| 12 | NUT |
| 13 | ASSEMBLY |
| 14 | SLEEVE |
| 15 | SEALING |
| 16 | REFLECTOR-HEAT |
| 17 | SPARK PLUG |
| 18 | CLAMP |
| 19 | CYLINDER |
| 20 | PLATE |
| 21 | GASKET KIT |
| 22 | FLAME PROTECTION |
| 23 | SCREEN |
| 24 | BOLT |
| 25 | GROMMET |
| 26 | CARBURETTOR |
| 27 | GASKET KIT |
| 28 | SCREW |
| 29 | PARTITION |
| 30 | SCREW |
| 31 | GASKET KIT |
| 32 | PISTON RING |
| 33 | LOCKING RING |
| 34 | PISTON |
| 35 | GASKET KIT |
| 36 | WRENCH |
| 37 | BEARING |
| 38 | COVER |
| 39 | CRANKSHAFT |
| 40 | MUFFLER |
