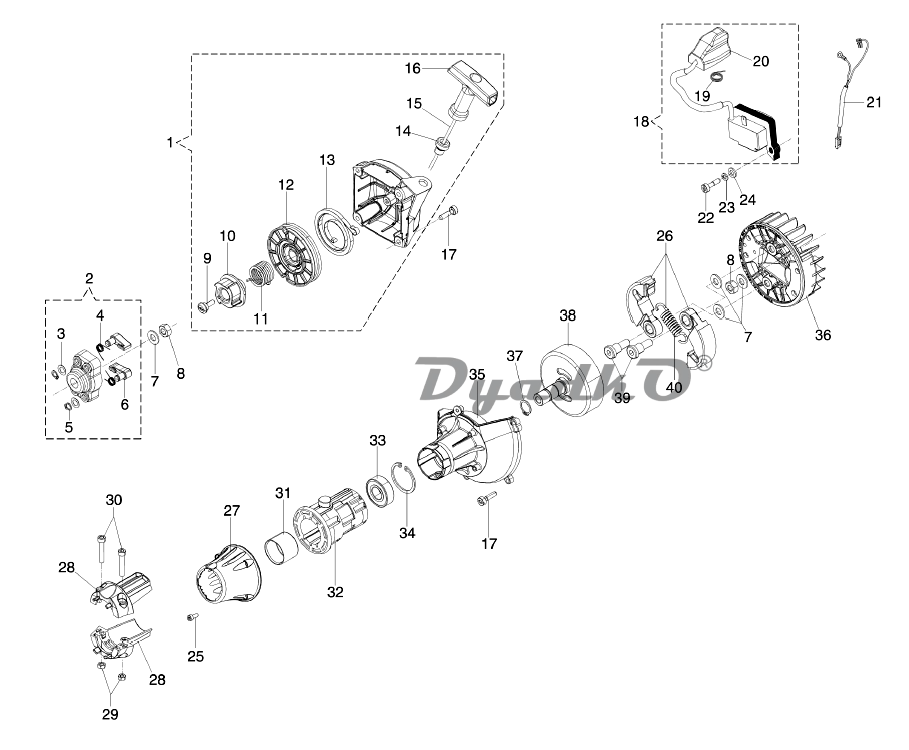

| 1 | Starter assy Arancio ; Orange |
| 2 | Clutch driver |
| 3 | Washer |
| 4 | Spring |
| 5 | Ring |
| 6 | Pawl |
| 7 | Washer |
| 8 | Nut |
| 9 | Screw |
| 10 | Sprocket |
| 11 | Spring |
| 12 | Starter pulley |
| 13 | Spring |
| 14 | Bushing |
| 15 | Starter rope |
| 16 | Starter handle |
| 17 | Screw |
| 18 | Ignition coil |
| 19 | Spring |
| 20 | Spark plug cap |
| 21 | Cable |
| 22 | Screw |
| 23 | Washer |
| 24 | Washer |
| 25 | Screw |
| 26 | Clutch |
| 27 | Cover |
| 28 | Adaptor |
| 29 | Nut |
| 30 | Screw |
| 31 | Bushing |
| 32 | Sleeve |
| 33 | Bearing |
| 34 | Ring |
| 35 | Starter case |
| 36 | Flywheel |
| 37 | Ring |
| 38 | Clutch drum |
| 39 | Pin |
| 40 | Spring |
