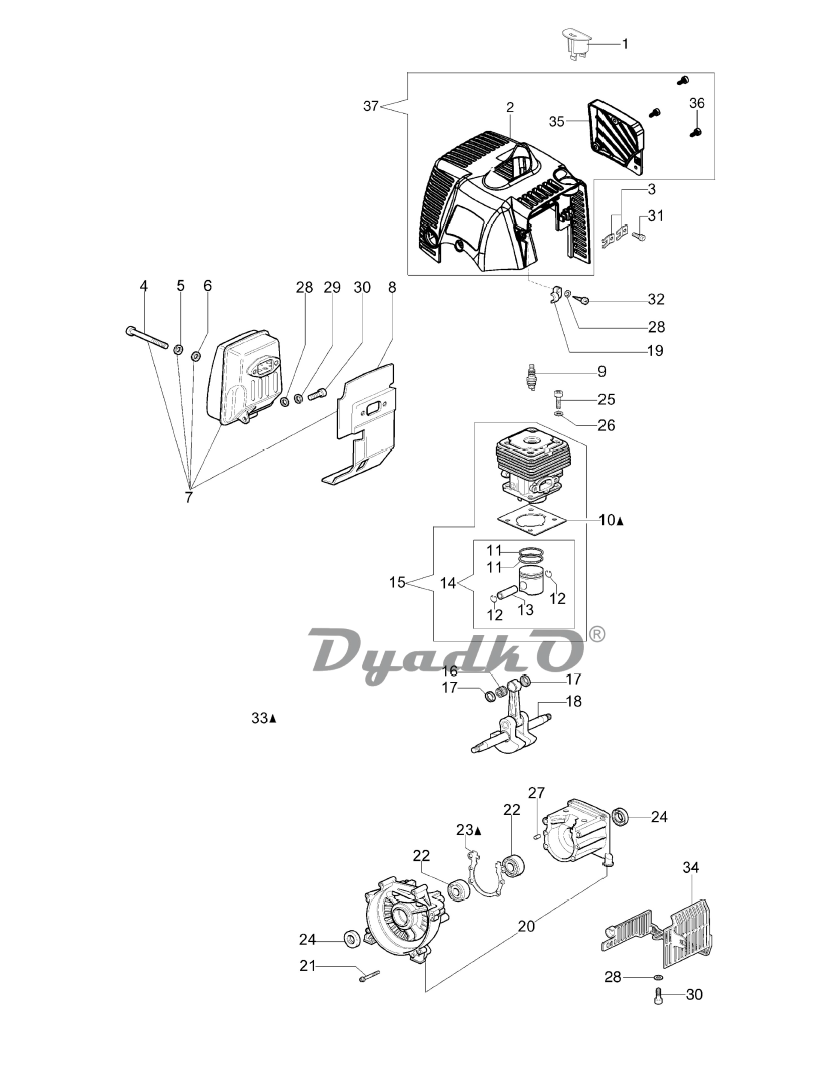

| 1 | Cover |
| 2 | Engine cover Arancio ; Orange |
| 3 | Plate |
| 4 | Screw |
| 5 | Washer |
| 6 | Washer |
| 7 | Muffler |
| 8 | Deflector |
| 9 | Spark plug bpmr7a |
| 10 | Gasket |
| 11 | Piston ring |
| 12 | Ring |
| 13 | Piston pin |
| 14 | Piston assy Ø40 |
| 15 | Complete cylinder |
| 16 | Bearing |
| 17 | Spacer |
| 18 | Crankshaft |
| 19 | Stopper |
| 20 | Crankcase assy |
| 21 | Screw |
| 22 | Bearing |
| 23 | Gasket |
| 24 | Seal ring |
| 25 | Screw |
| 26 | Washer |
| 27 | Plug |
| 28 | Washer |
| 29 | Washer |
| 30 | Screw |
| 31 | Screw |
| 32 | Screw |
| 33 | Gasket set |
| 34 | Guard |
| 35 | Cover |
| 36 | Screw |
| 37 | Cylinder cover set Arancio ; Orange |
