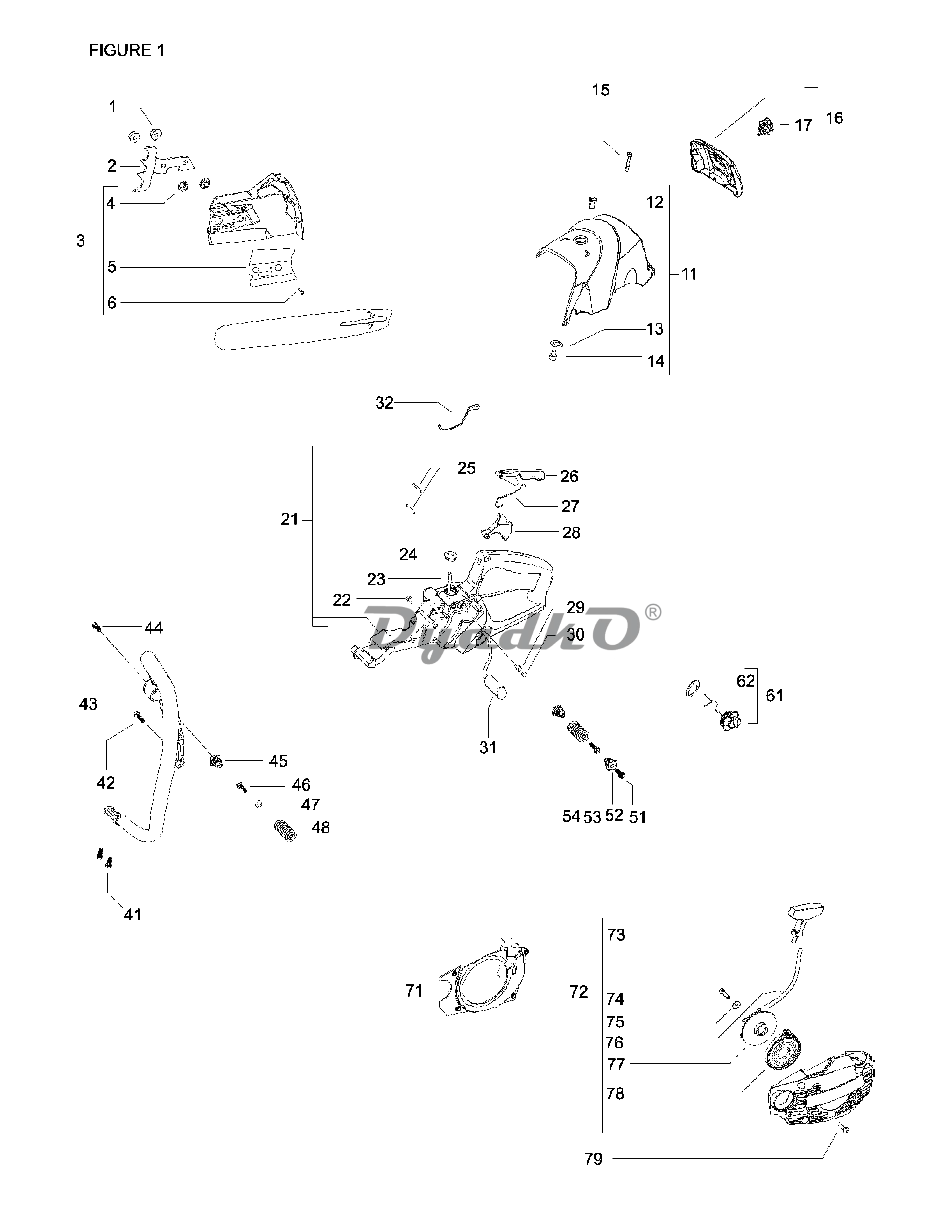

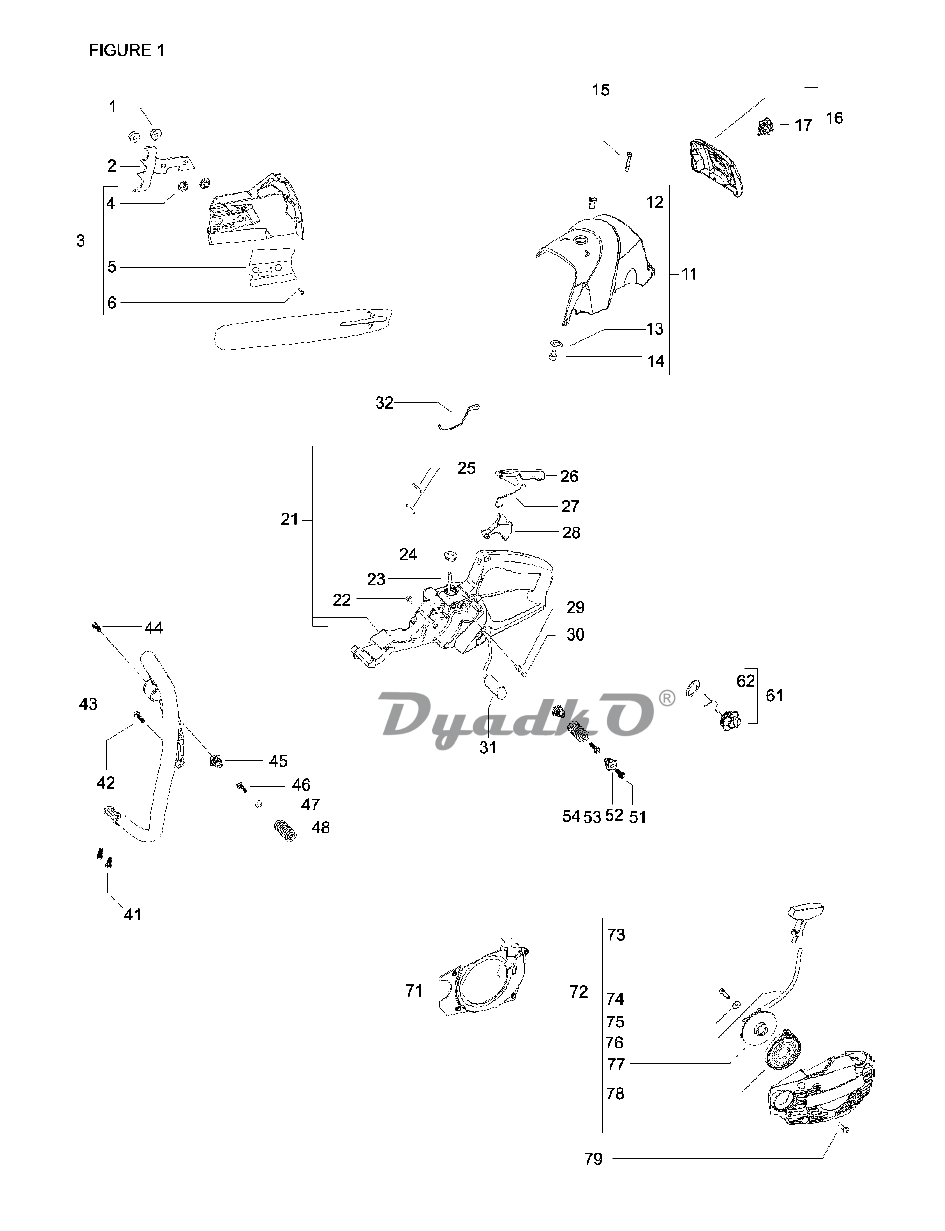

Схема PARTNER P4700, P5000, P5300 (965193401, 965193402, 965193403, 965193421, 965193422, 965193423, 965193431, 965193432, 965193433) 2007-01 Топливный бак, Стартер
| 1 | NUT |
| 2 | SPIKE |
| 3 | CLUTCH COVER ASSY |
| 4 | BUSHING |
| 5 | PLATE |
| 6 | SCREW |
| 11 | CYLINDER COVER |
| 12 | NUT |
| 13 | WASHER |
| 14 | SUPPORT |
| 15 | SCREW |
| 16 | AIR FILTER COVER |
| 17 | KNOB |
| 21 | REAR HANDLE ASSY |
| 22 | GROMMET |
| 23 | FUEL HOSE |
| 24 | GROMMET |
| 25 | PEN |
| 26 | SAFETY LEVER |
| 27 | TRIGGER SPRING |
| 28 | THROTTLE TRIGGER |
| 29 | VALVE VERNAY VT 312-110 |
| 30 | SINTERED 8X4 |
| 31 | FUEL FILTER |
| 32 | THROTTLE SLIDE ASSY CS010 |
| 41 | SCREW IHSCT |
| 42 | SCREW IHSCFT |
| 43 | FRONT HANDLE |
| 44 | SCREW IHSCT |
| 45 | ANTIVIBE |
| 46 | SCREW |
| 47 | WASHER |
| 48 | ABSORBER |
| 51 | SCREW IHSCT |
| 52 | SPRING GUIDE |
| 53 | SCREW IHSCT |
| 54 | SPRING |
| 61 | FUEL/OIL CAP ASSY |
| 62 | O-RING |
| 71 | AIR CONDUCTOR |
| 72 | STARTER DEVICE |
| 73 | GRIP |
| 74 | SCREW |
| 75 | WASHER |
| 76 | STARTER CORD |
| 77 | STARTER PULLEY |
| 78 | SPRING CASSETTE ASSY |
| 79 | SCREW |
