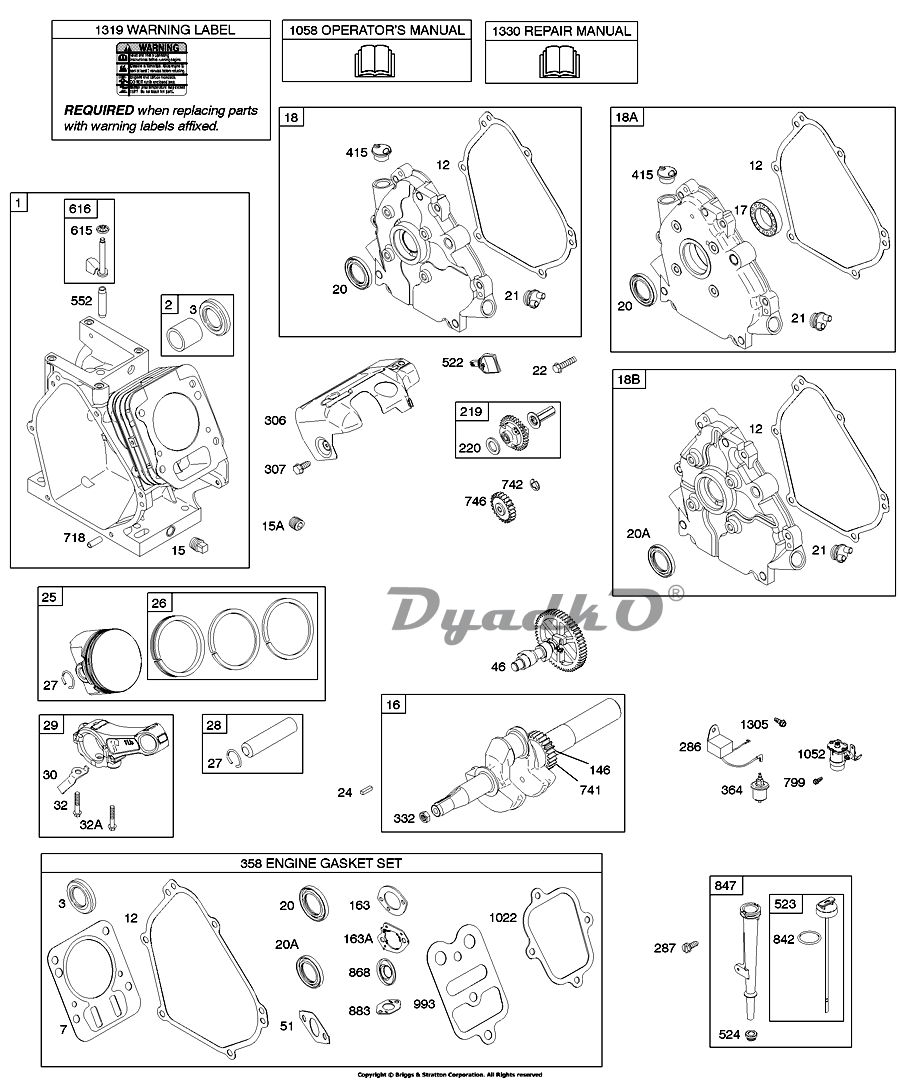

Схема BRIGGS&STRATTON 120302-0299-E1 Camshaft, Crankcase Cover, Crankshaft, Cylinder, Lubrication, Piston Group

1 Cylinder Assembly
2 Kit-Bushing/Seal (Magneto Side)
3 SEAL, Oil (Magneto Side)
7 Gasket-Cylinder Head
12 Gasket-Crankcase
15 PLUG, Oil Drain (Square Head)(1/4\" Diameter)
15A Plug-Oil Drain (Hex Socket)(1/4\" Diameter)
16 Crankshaft
17 Bearing-Ball
18 Cover-Crankcase
20 Seal-Oil (PTO Side)
21 Cap-Oil Fill
22 Screw (Crankcase Cover/Sump)
24 KEY, Flywheel
25 Piston Assembly (Standard)
25 Piston Assembly (.020 Oversize)
26 Ring Set (.020 Oversize) Used After Code Date 05060600
26 Ring Set (Standard) Used After Code Date 05060600
26 Ring Set (.020 Oversize) Used Before Code Date 05060700
26 Ring Set (Standard) Used Before Code Date 05060700
27 Lock-Piston Pin
28 Pin-Piston
29 Rod-Connecting
30 Dipper-Connecting Rod
32 Screw (Connecting Rod)
32A Screw (Connecting Rod)
46 Camshaft
51 Gasket-Intake (2 Required)
146 KEY, Woodruff
163 Gasket-Air Cleaner (Flat Panel Air Cleaner)
163A Gasket-Air Cleaner (High Mount)
219 GEAR, Governor
220 Washer (Governor Gear)
286 Module-Oil Sensor
287 Screw (Dipstick Tube)
306 Shield-Cylinder
307 Screw (Cylinder Shield)
332 Nut (Flywheel)
358 Gasket Set-Engine
364 Terminal-Oil Plug
415 Plug (Crankcase Cover/Sump)
522 Plug-Dipstick/Fill
523 Dipstick
524 Seal-Dipstick Tube
552 Bushing-Governor Crank
615 Retainer-Governor Shaft
616 Crank-Governor
718 PIN, Locating
741 Gear-Timing
742 RETAINER, E Ring (Idler Gear)
746 Gear-Idler
799 Screw (Oil Sensor)
842 SEAL, O-Ring (Dipstick Tube)
847 Dipstick/Tube Assembly
868 Seal-Valve
883 Gasket-Exhaust (Between Adapter And Cylinder)
993 Gasket-Cylinder Head Plate
1022 Gasket-Rocker Cover
1052 Sensor-Oil
1058 Operator\'s Manual
1305 Screw (Oil Sensor Module)
1319 LABEL, Warning
1330 Repair Manual
