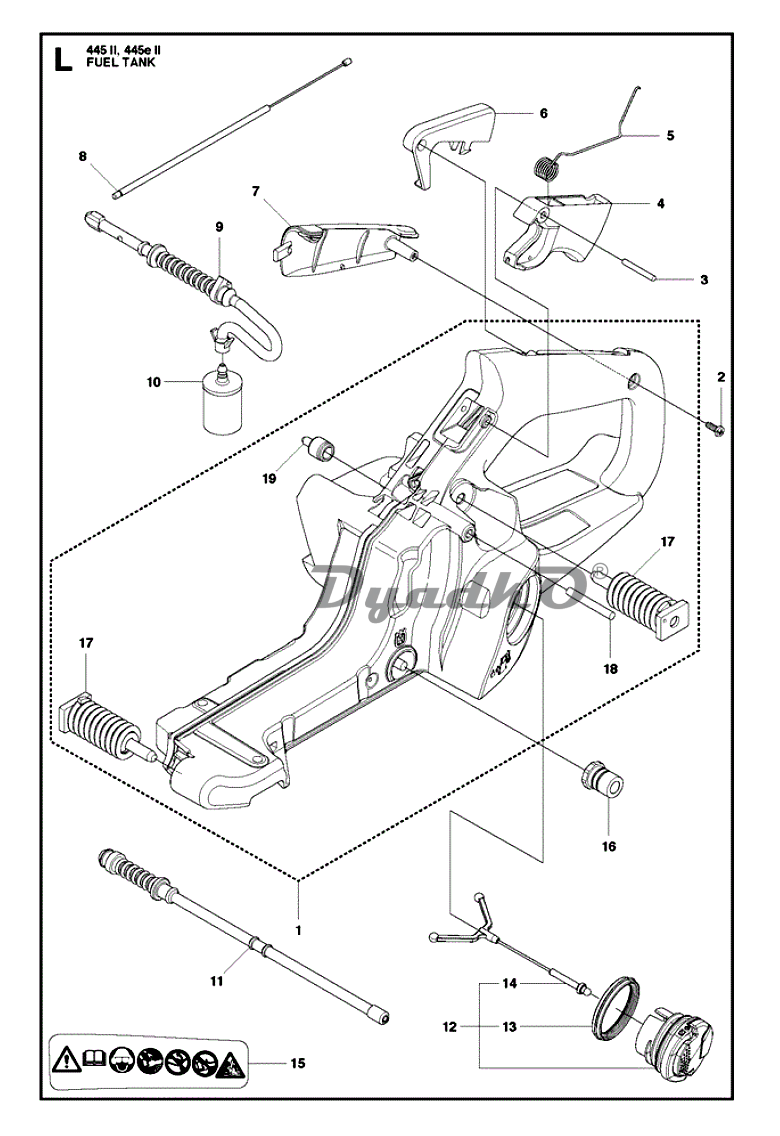

| 1 | FUEL TANK ASSY |
| 2 | SCREW CCRPANT |
| 3 | PARALLEL PIN |
| 4 | THROTTLE TRIGGER |
| 5 | SPRING |
| 6 | THROTTLE LOCKOUT |
| 7 | HANDLE INSERT |
| 8 | THROTTLE CABLE ASSY |
| 9 | FUEL HOSE |
| 10 | FUEL FILTER |
| 11 | RETURN HOSE |
| 12 | TANK CAP ASSY |
| 13 | GASKET |
| 14 | HOLDER |
| 15 | LABEL |
| 16 | LATERAL SUPPORT |
| 17 | ANTIVIBRATION ELEMENT |
| 18 | GROOVED PIN |
| 19 | TANK VENT ASSY |
