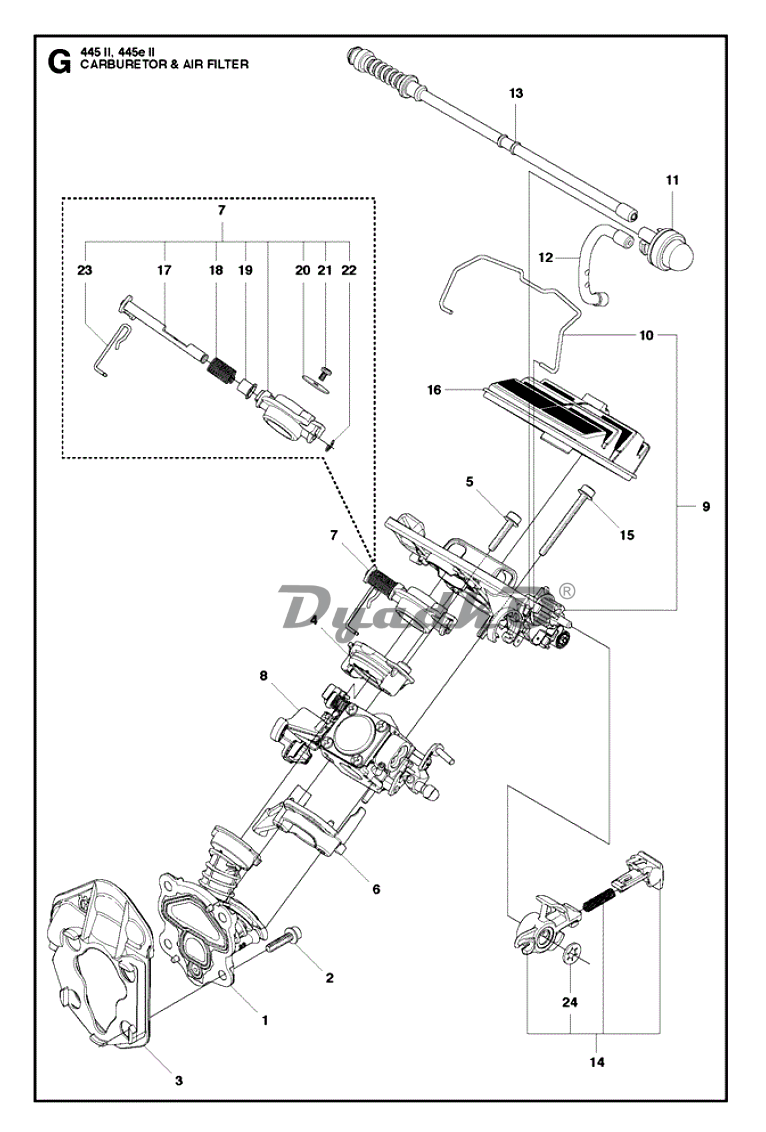

| 1 | PIPE ASSY |
| 2 | SCREW IHSCFM |
| 3 | INTERMEDATE WALL |
| 4 | FLANGE |
| 5 | SCREW IHSCFT |
| 6 | FLANGE |
| 7 | THROTTLE |
| 8 | CARBURETTOR C1M-EL37B |
| 9 | FILTER HOLDER |
| 10 | SHACKLE |
| 11 | PURGE air purge |
| 12 | HOSE |
| 13 | RETURN HOSE |
| 14 | CONTROL |
| 15 | SCREW IHSCFT |
| 16 | AIR FILTER 80µ |
| 16 | AIR FILTER 44µ |
| 17 | SHAFT ASSY |
| 18 | SPRING |
| 19 | COLLAR |
| 20 | VALVE |
| 21 | SCREW |
| 22 | CLIP |
| 23 | ROD |
| 24 | WASHER |
