MT904

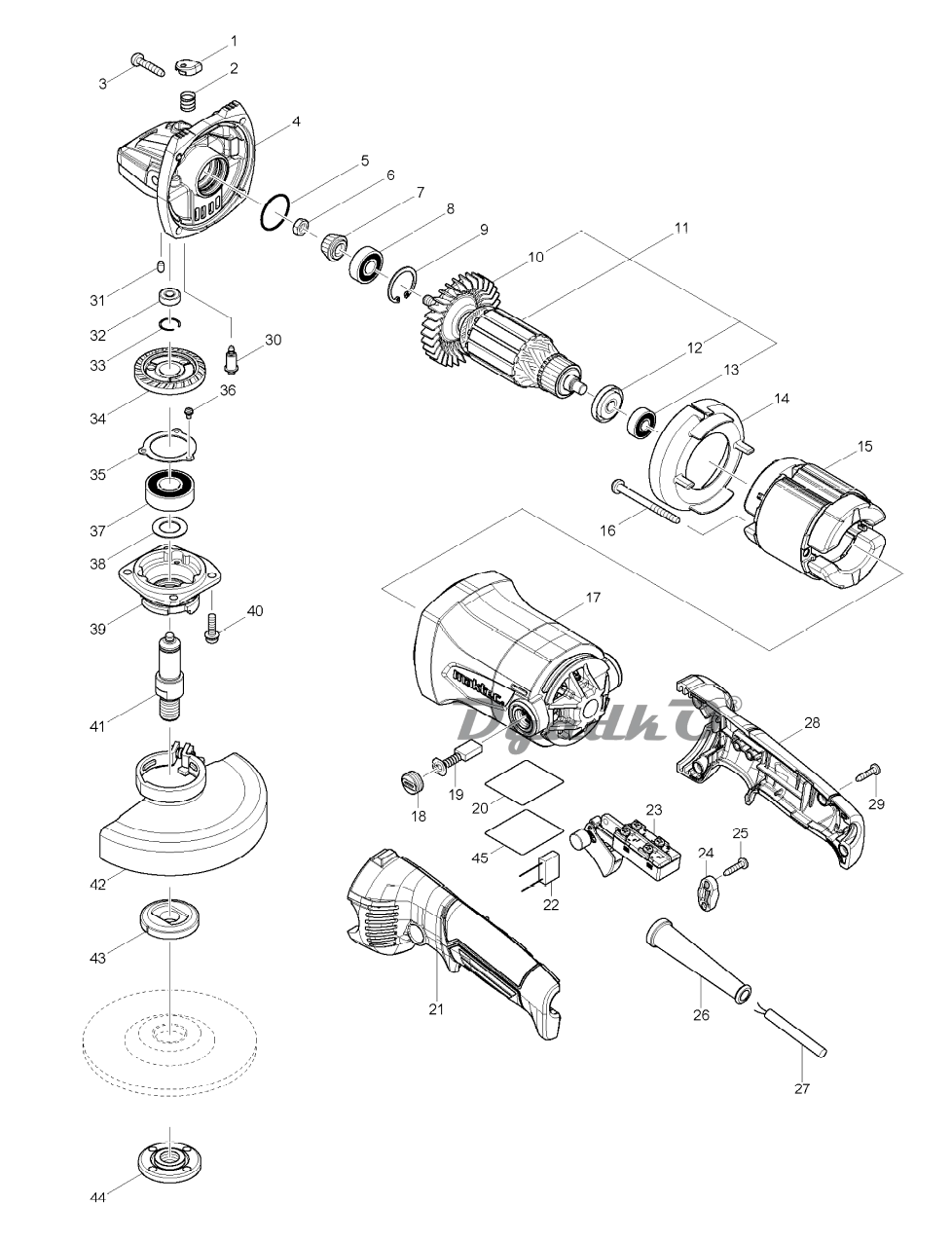

Схема MAKTEC MT904
1
PIN CAP
2
COMPRESSION SPRING 8
3
TAPPING SCREW 5X25
4
GEAR HOUSING
5
O-RING 26
6
HEX.NUT M7
7
SPIRAL BEVEL GEAR 11
8
BALL BEARING 6000DDW
9
RETAINING RING R-26
10
FAN 70
11
ARMATURE ASS\'Y 240V INC. 10,12,13
12
INSULATION WASHER
13
BALL BEARING 608ZZ
14
BAFFLE PLATE
15
FIELD ASS\'Y 240V
16
TAPPING SCREW 5X60
17
MOTOR HOUSING COMPLTE
18
HOLDER CAP 7X11
19
CARBON BRUSH CB-303
20
MT904 NAME PLATE
21
HANDLE SET INC. 28
22
NOISE SUPPRESSOR
23
SWITCH TN31-2
24
STRAIN RELIEF
25
TAPPING SCREW 4X18
26
CORD GUARD 9.3-90
27
POWER SUPPLY CORD 1.0-2-2.0
28
HANDLE SET INC. 21
29
TAPPING SCREW 4X18
30
SHOULDER PIN 5
31
RUBBER PIN 4
32
BALL BEARING 696ZZ
33
RING SPRING 13
34
SPIRAL BEVEL GEAR 35A
35
BEARING RETAINER 39
36
PAN HEAD SCREW M3X6
37
BALL BEARING 6202DDW
38
FLAT WASHER 15
39
BEARING BOX
40
PAN HEAD SCREW M5X18
41
SPINDLE
42
WHEEL COVER 125AK ASSEMBLY
43
INNER FLANGE 42
44
LOCK NUT 14-45
45
CLEAR LABEL
A01
GRIP 36 COMPLETE
A02
LOCK NUT WRENCH 35
