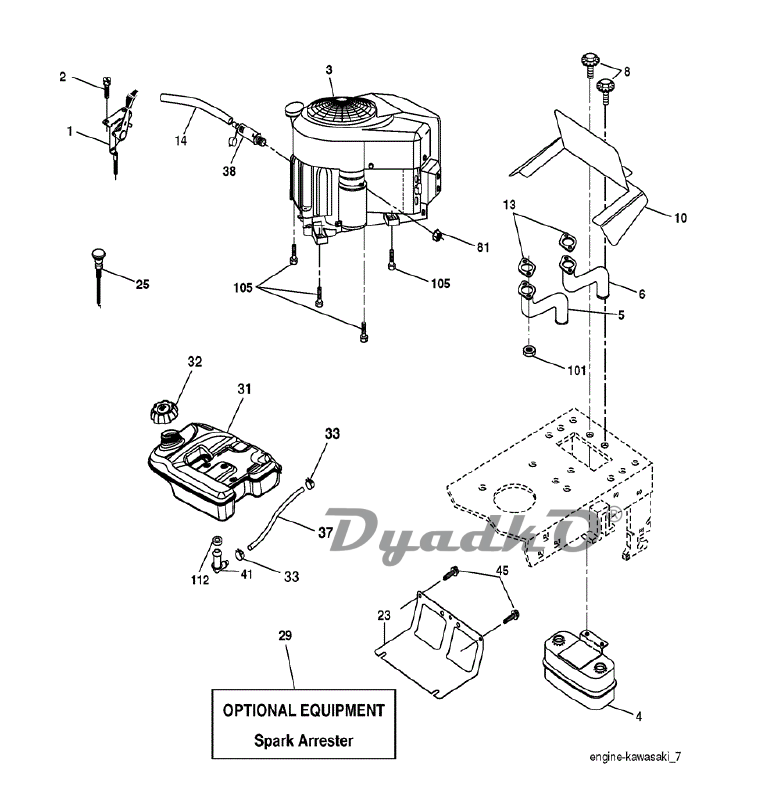

| 1 | CONTROL THROT FLAG |
| 2 | SCREW |
| 4 | MUFFLER |
| 5 | TUBE |
| 6 | TUBE |
| 8 | BOLT |
| 10 | HEAT SHIELD |
| 14 | TUBE |
| 23 | HEAT SHIELD |
| 25 | CONTROL |
| 29 | SPARK ARRESTER KIT |
| 31 | TANK FUEL 3 50 REAR |
| 32 | TANK CAP |
| 33 | HOSE CLAMP |
| 37 | FULE LINE |
| 41 | NIPPLE |
| 45 | SCREW |
| 81 | NUT |
| 101 | NUT HEX FLANGE TOPLOCK |
| 105 | SCREW |
| 112 | BUSHING |
