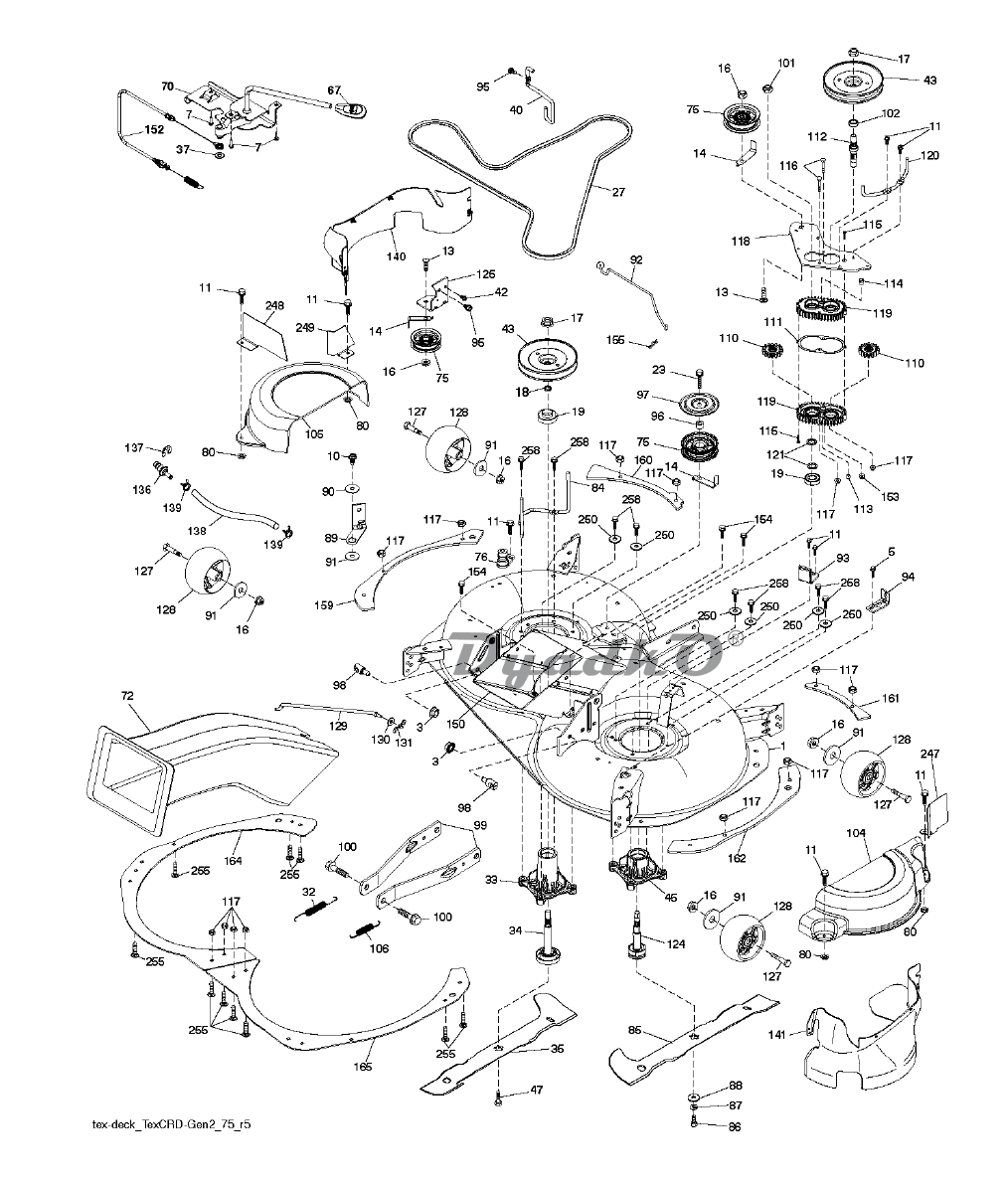

Схема MCCULLOCH M155-107TC (96051015100) 2016 MOWER DECK / CUTTING DECK

1 DECK FRAME
3 NUT
5 BOLT
7 SCREW
10 SCREW
11 SCREW
13 BOLT
14 BELT GUIDE
16 NUT
17 NUT
18 WASHER
19 BEARING
23 SCREW
27 BELT
32 SPRING
33 MANDREL
34 SHAFT
35 BLADE
37 WASHER
40 BELT GUIDE
42 SCREW
43 PULLEY
45 HOUSING
47 SCREW
67 HANDLE
70 CLUTCH
72 CHUTE
75 PULLEY
76 PORT
80 NUT
84 KEEPER
85 BLADE
86 BOLT
87 WASHER
88 WASHER
89 ARM
90 SPACER
91 WASHER
92 ROD
93 ARM
94 BRACKET
95 SCREW
96 SPACER
97 PROTECTOR
98 STUD
99 ARM
100 BOLT
101 NUT
102 SPACER
104 COVER
105 COVER
106 RESSORT RETOUR FREIN DE LAME
110 GEAR
111 GASKET
112 SHAFT
113 PLUG
114 BREATHER
115 SCREW
116 BOLT
117 NUT
118 ARM
119 GEARCASE
120 KEEPER
121 WASHER
124 MANDREL
125 BRACKET
127 BOLT
128 WHEEL
129 ROD
130 WASHER
131 PIN
136 PLUG
137 RETAINER RING
138 HOSE
139 CLAMP
140 GUARD
141 GUARD
150 CHUTE ASSY
152 CABLE
153 NUT
154 SCREW
155 RETAINING RING
159 REINFORCEMENT PLATE
160 REINFORCEMENT PLATE
161 REINFORCEMENT PLATE
162 REINFORCEMENT PLATE
164 BAFFLE PLATE
165 BAFFLE
247 GUARD
248 GUARD
249 GUARD
250 WASHER
255 BOLT (589109800) BOLT
258 BOLT
_ MANDREL MANDREL ASSEMBLY TALL (Includes Housing (key #33), (Shaft key #34) and (Bearing key #19) only - Pulley/Nut/Washer and Blade Bolt/Washers Not Included)
_ MANDREL MANDREL ASSEMBLY SHORT (Includes Housing (key #45), Shaft Assembly (key #124), and Bearing (key #19) only-Pulley/Nut/Washer and Blade Bolt/Washers Not
_ DECK
_ GEARBOX ASSY Gear Case Kit. Use .75 oz. Shell 460 Oil. (Include Gear Output (key #110), Gasket Gearcase (key #111), Shaft Gearcase (key #112), Plug Oil (key #113), Vent Breather 1/8 NPT (key #114), Screw Torx (key #115), Gearcase Subasm (key #119).
