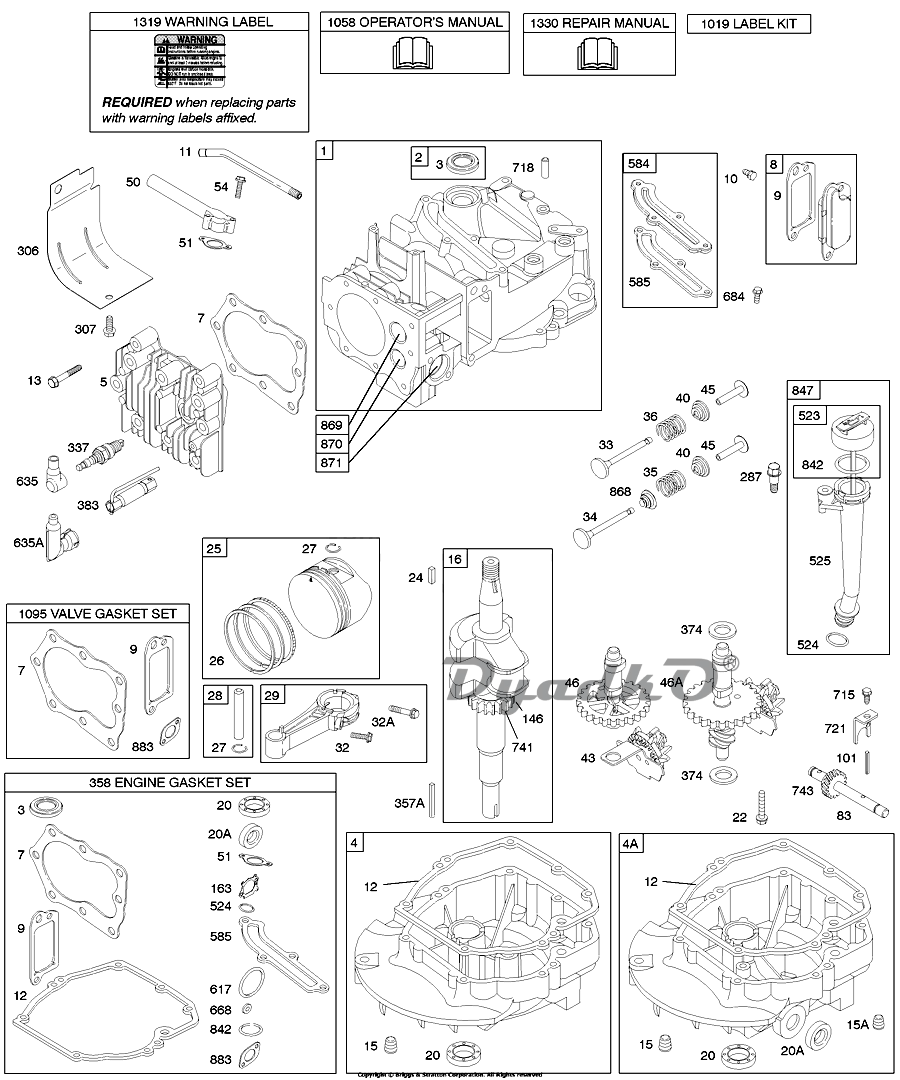

Схема BRIGGS&STRATTON 12J802-1974-B1 Cams, Crankshaft, Cylinder, Engine Sump, Kit/Gaskets, Lubrication, Piston Group, Valves

1 Cylinder Assembly Used After Code Date 11063000
1 Cylinder Assembly Used Before Code Date 11070100
2 Kit-Bushing/Seal (Magneto Side)
3 SEAL, Oil (Magneto Side)
4 Sump, Engine
4A Sump-Engine (Auxiliary PTO)
5 Head-Cylinder Used Before Code Date 11070100
5 Head-Cylinder Used After Code Date 11063000
7 Gasket-Cylinder Head Used After Code Date 11063000
7 Gasket-Cylinder Head Used Before Code Date 11070100
8 Breather Assembly Used Before Code Date 11070100
8 Breather Assembly Used After Code Date 11063000
9 Gasket-Breather Used Before Code Date 11070100
9 Gasket-Breather Used After Code Date 11063000
10 Screw (Breather Assembly)
11 Tube-Breather
12 Gasket-Crankcase
13 Screw (Cylinder Head) Used Before Code Date 11070100
13 Screw (Cylinder Head) Used After Code Date 11063000
15 PLUG, Oil Drain (Square Socket)
15A Plug-Oil Drain (Hex Socket)
16 Crankshaft Used After Code Date 97011200
20 Seal-Oil (PTO Side)
20A Seal-Oil (PTO Side) (Auxiliary PTO)
22 Screw (Crankcase Cover/Sump)
24 KEY, Flywheel
25 Piston Assembly (Standard) Used Before Code Date 97011300
25 Piston Assembly (.020\" Oversize) Used Before Code Date 97011300
25 Piston Assembly (Standard) Used After Code Date 11063000
25 Piston Assembly (.020\" Oversize) Used After Code Date 11063000
25 Piston Assembly (Standard) Used After Code Date 97011200 Used Before Code Date 07090400
25 Piston Assembly (.020\" Oversize) Used After Code Date 97011200 Used Before Code Date 07090400
25 Piston Assembly (Standard) Used After Code Date 07090300 Used Before Code Date 09041700
25 Piston Assembly (.020\" Oversize) Used After Code Date 07090300 Used Before Code Date 09041700
25 Piston Assembly (Standard) Used After Code Date 09041600 Used Before Code Date 11070100
25 Piston Assembly (.020\" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100
26 Ring Set (Standard) Used Before Code Date 97011300
26 Ring Set (.020\" Oversize) Used Before Code Date 97011300
26 Ring Set (.030\" Oversize) Used Before Code Date 97011300
26 Ring Set (Standard) Used After Code Date 97011200 Used Before Code Date 04031500
26 Ring Set (.020\" Oversize) Used After Code Date 97011200 Used Before Code Date 04102200
26 Ring Set (Standard) Used After Code Date 11063000
26 Ring Set (.020\" Oversize) Used After Code Date 11063000
26 Ring Set (Standard) Used After Code Date 04031400 Used Before Code Date 07090400
26 Ring Set (.020\" Oversize) Used After Code Date 04102100 Used Before Code Date 07090400
26 Ring Set (Standard) Used After Code Date 07090300 Used Before Code Date 09041700
26 Ring Set (.020\" Oversize) Used After Code Date 07090300 Used Before Code Date 09041700
26 Ring Set (Standard) Used After Code Date 09041600 Used Before Code Date 11070100
26 Ring Set (.020\" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100
27 Lock-Piston Pin Used Before Code Date 97011300
27 Lock-Piston Pin Used After Code Date 09041600
27 Lock-Piston Pin Used After Code Date 97011200 Used Before Code Date 09041700
28 Pin-Piston (.005\" Oversize) Used Before Code Date 97011300
28 Pin-Piston (Standard) Used Before Code Date 97011300
28 Pin-Piston (Standard) Used After Code Date 09041600
28 Pin-Piston (Standard) Used After Code Date 97011200 Used Before Code Date 09041700
29 Rod-Connecting (Standard) Used After Code Date 09041600
29 Rod-Connecting (Standard) Used Before Code Date 97011300
29 Rod-Connecting (Standard) Used After Code Date 97011200 Used Before Code Date 09041700
32 Screw (Connecting Rod)
32A Screw (Connecting Rod) Used After Code Date 00042200
33 Valve-Exhaust Used After Code Date 11063000
33 Valve-Exhaust Used Before Code Date 11070100
34 Valve-Intake Used Before Code Date 11070100
34 Valve-Intake Used After Code Date 11063000
35 Spring-Valve (Intake)
36 Spring-Valve (Exhaust)
40 Retainer-Valve
43 Slinger-Governor/Oil
45 Tappet-Valve
46 Camshaft Used Before Code Date 96060300
46 Camshaft Used After Code Date 96060200
50 Manifold-Intake
51 Gasket-Intake
54 Screw (Intake Manifold)
83 Shaft-Auxiliary Drive
101 Pin-Shaft (Drive Gear)
146 KEY, Woodruff
163 Gasket-Air Cleaner
287 SCREW (Dipstick Tube)
306 Shield-Cylinder
307 Screw (Cylinder Shield)
337 Plug-Spark Used After Code Date 11063000
337 Plug-Spark (EMS) Used Before Code Date 11070100
337 Plug-Spark (Resistor) Used Before Code Date 11070100
357A Key-Drive Pulley
358 Gasket Set-Engine Used After Code Date 11063000
358 Gasket Set-Engine Used Before Code Date 11070100
374 Washer (Camshaft)
383 Wrench-Spark Plug
523 Dipstick
524 Seal-Dipstick Tube
525 Tube-Dipstick
584 Cover-Breather Passage
585 Gasket-Breather Passage
617 Seal-O Ring (Intake Manifold)
635 BOOT, Spark Plug
635A Boot-Spark Plug (Screw On Style)
635A Boot-Spark Plug (Snap In Style)
668 Spacer
684 Screw (Breather Passage Cover)
715 Screw (Stop Shaft)
718 PIN, Locating
721 Stop-Shaft
741 Gear-Timing (Use Without Woodruff Key) Used After Code Date 07093000 Used Before Code Date 08021800
741 Gear-Timing (Plastic) Used After Code Date 08021700
741 Gear-Timing (Metal) Used After Code Date 08021700
741 Gear-Timing (Uses Woodruff Key)
741 Gear-Timing (Use Without Woodruff Key) Used Before Code Date 07100100
842 SEAL, O-Ring (Dipstick Tube)
847 Dipstick/Tube Assembly
868 Seal-Valve Used After Code Date 11063000
868 Seal-Valve Used Before Code Date 11070100
869 Seat-Valve (Intake)
870 Seat-Valve (Exhaust)
871 Bushing-Valve Guide (Exhaust) Used Before Code Date 11070100
871 Bushing-Valve Guide (Intake) Used Before Code Date 11070100
871 Bushing-Valve Guide Used After Code Date 11063000
883 Gasket-Exhaust
1019 Kit-Label
1019 Kit-Label (Touch N Mow)
1058 Operator\'s Manual Used After Code Date 11063000
1058 Operator\'s Manual Used Before Code Date 11070100
1095 Gasket Set-Valve Used Before Code Date 11070100
1095 Gasket Set-Valve Used After Code Date 11063000
1319 LABEL, Warning
1330 Repair Manual
