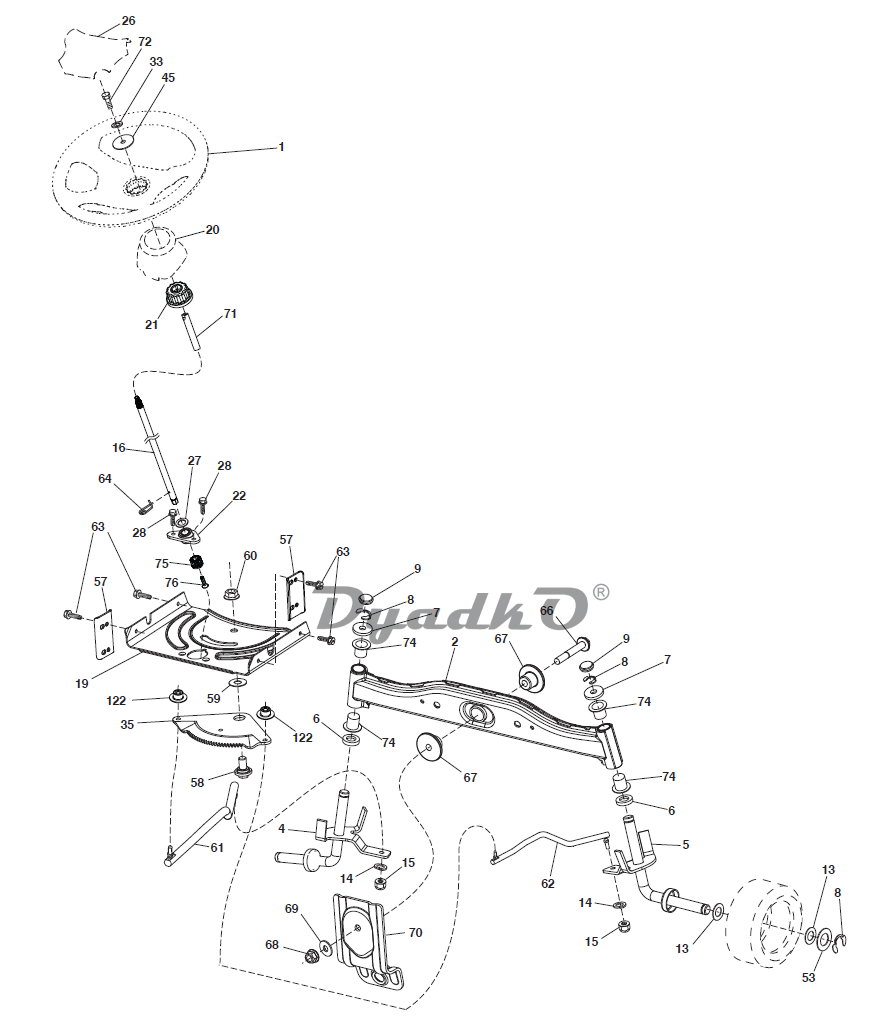

Схема (деталировка) тракторы садовые и райдеры MCCULLOCH M110-97T CLASSIC (960410406) STEERING ASSEMBLY. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Wheel, Steering
2	Axle Asm., Front
4	Spindle Asm., LH
5	Spindle Asm., RH
6	Bearing, Race Thrust Hardened
7	Washer 25/32 x 1-5/8 x 16 Ga.
8	Ring, Klip #T5304-75
9	Cap, Spindle
13	Washer, 25/32 x 1-1/4 x 16 Ga.
14	Washer, SLW ZD 3/8
15	Nut, Crown Lock 3/8-24 unf
16	Steering Shaft
19	Plate Steering
20	Boot, Steering
21	Adapter, Wheel Steering
22	Bearing
26	Insert, Wheel Steering
27	Washer 21 x 32 x 1 x 16 Ga.
28	Screw 3/8-16 x 3/4
33	Washer Lock 5/16
35	Gear, Sector Plate
45	Washer 11/32 x 3/8 x 12 Ga.
53	Washer Hardened .793 x 1.637 x .060
57	Bracket Upstop
58	Bolt Shoulder Sector Pivot CFM
59	Washer Thrust Sector Steering
60	Nut Flange Lock 5/8-11
61	Draglink, LH
62	Draglink, RH
63	Screw 5/16-18 x 3/4
64	Retainer Clip Spring Steering
66	Bolt Hex Fghd 7/16-14 x 3 Serr
67	Bushing PM Front Axle
68	Nut Lock Flange 7/16-14 Gr. 5
69	Washer 1.5 x .505 x .118
70	Bracket Deck Susp. Front
71	Shaft Extension Steering
72	Bolt Fin Hex 5/16-18 x 3/4 w/Patch
74	Bearing
75	Pinion
76	Screw Head Sock
122	Cap Gear
