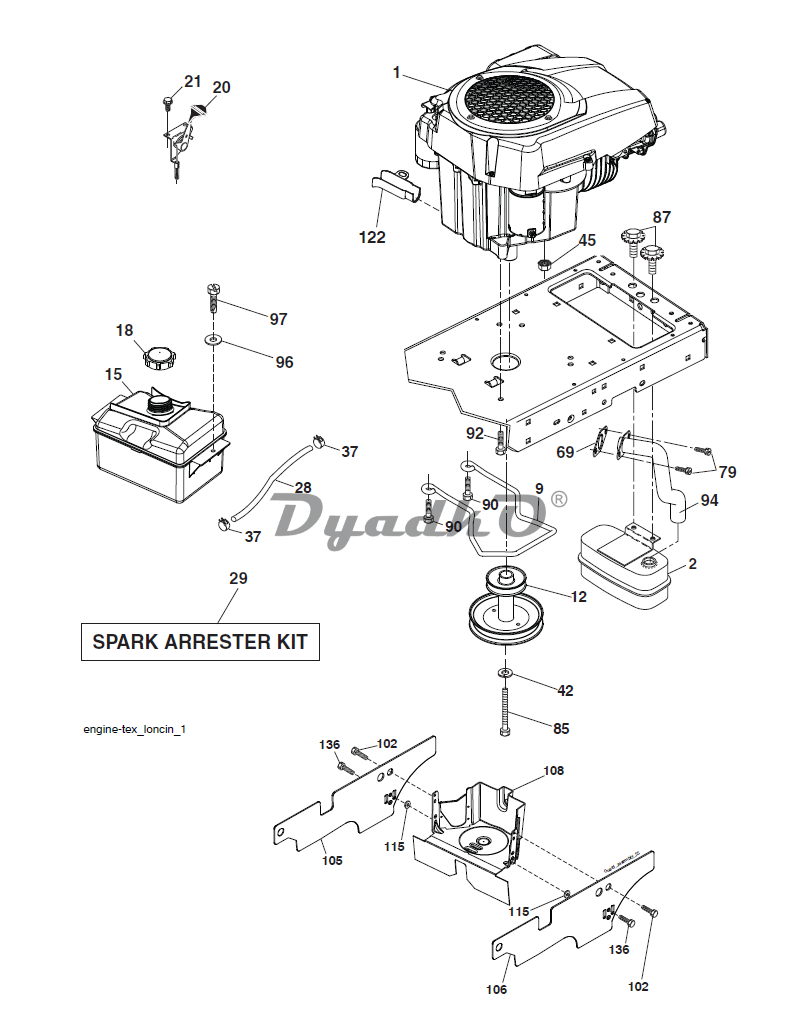

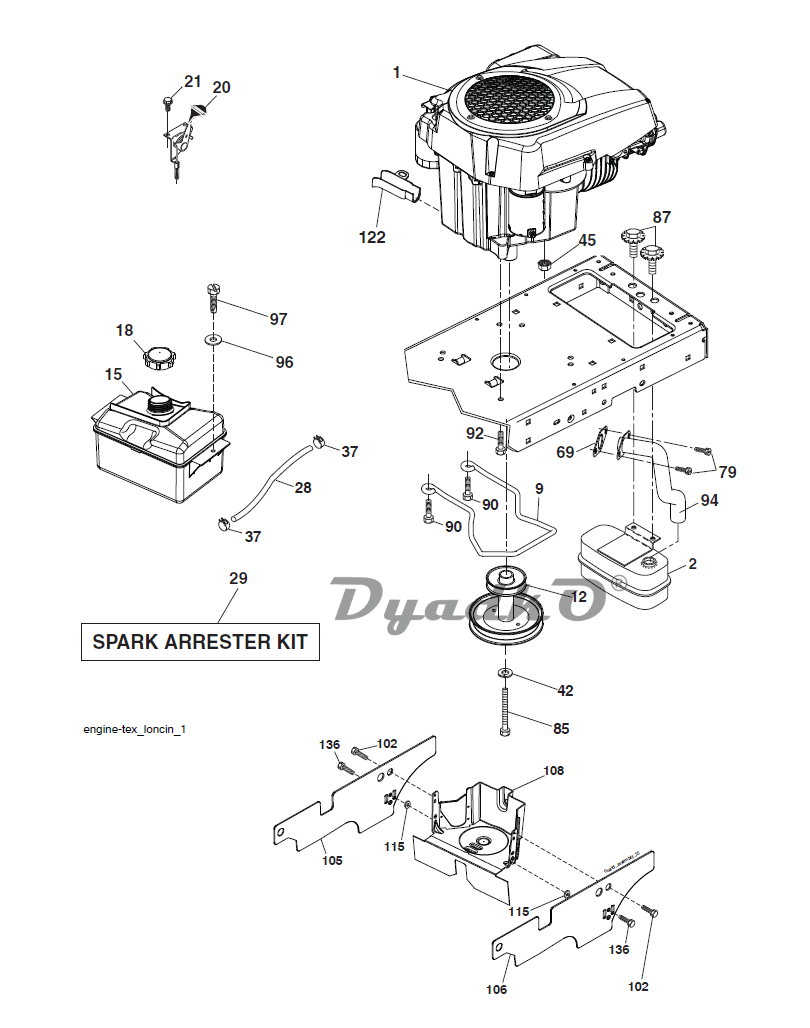

Схема MCCULLOCH M110-97T CLASSIC (960410406) ENGINE

1	Engine McCulloch LC1P85F (590825601)
2	Muffler
9	Keeper Belt Engine
12	Pulley Engine
15	Tank Fuel 1.5
18	Cap Asm
20	Control Throttle
21	Screw #10 x .750 BOS Thread
28	Fuel Line
29	Spark Arrester Kit
37	Clamp Hose
42	Washer SLW STD 7/16
45	Nut Hex Flange M6 Serrated
69	Gasket
79	Screw Socket 5/16-18 x 1
85	Bolt Hex 7/16-20 x 4 Gr. 5 1.5
87	Bolt 5/16-18 unc x 3/4
90	Screw 3/8-16 x 1
92	Screw 3/8-16 x 1
94	Tube Exhaust
96	Washer 9/32 x 7/8 x 16 Ga.
97	Screw Hexwsh Thdrol 1/4-20 x 3/4
102	Screw 5/16-18 x 3/4
105	Shield Side LH
106	Shield Side RH
108	Cover Eng. Pulley w/SHLD 38\", 42\"
115	Palnut #10
122	Extension Drain Oil
136	Screw, #10 0.500, BOS
