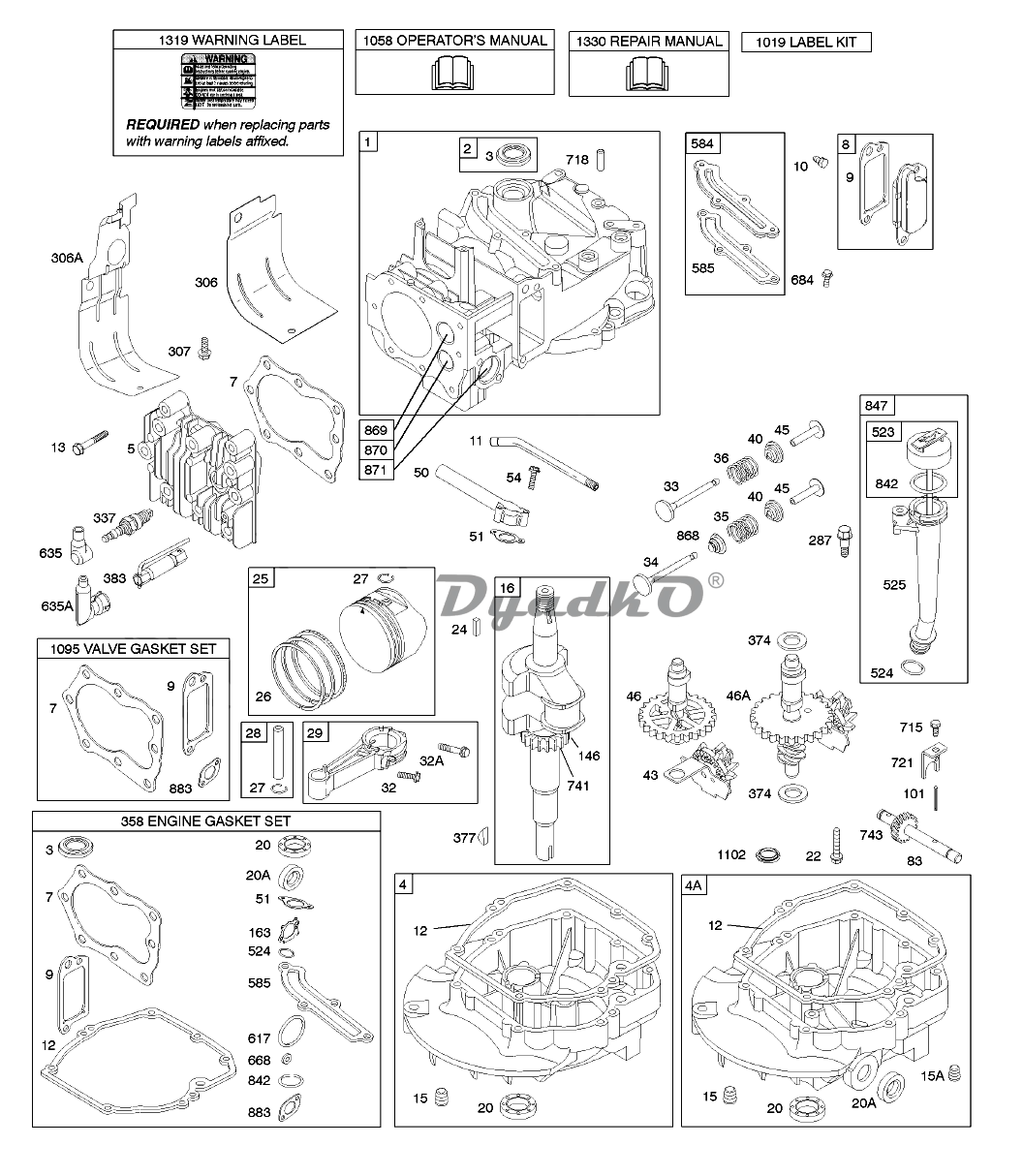

1 |
Cylinder Assembly-Used After Code Date 11063000 |
|
1 |
Cylinder Assembly-Used Before Code Date 11070100 |
|
2 |
Kit-Bushing/Seal-(Magneto Side) |
|
3 |
SEAL, Oil-(Magneto Side) |
|
4 |
Sump, Engine |
|
4A |
Sump-Engine-(Auxiliary PTO) |
|
5 |
Head-Cylinder-Used After Code Date 11063000 |
|
5 |
Head-Cylinder-Used Before Code Date 11070100 |
|
7 |
Gasket-Cylinder Head-Used Before Code Date 11070100 |
|
7 |
Gasket-Cylinder Head-Used After Code Date 11063000 |
|
8 |
Breather Assembly-Used After Code Date 11063000 |
|
8 |
Breather Assembly-Used Before Code Date 11070100 |
|
9 |
Gasket-Breather-Used After Code Date 11063000 |
|
9 |
Gasket-Breather-Used Before Code Date 11070100 |
|
10 |
Screw-(Breather Assembly) |
|
11 |
Tube-Breather |
|
12 |
Gasket-Crankcase |
|
13 |
Screw-(Cylinder Head)-Used Before Code Date 11070100 |
|
13 |
Screw-(Cylinder Head)-Used After Code Date 11063000 |
|
15 |
PLUG, Oil Drain-(Square Socket) |
|
15A |
Plug-Oil Drain-(Hex Socket) |
|
16 |
Crankshaft-Used After Code Date 97011200 |
|
20 |
Seal-Oil-(PTO Side) |
|
20A |
Seal-Oil-(PTO Side) (Auxiliary PTO) |
|
22 |
Screw-(Crankcase Cover/Sump) |
|
24 |
KEY, Flywheel |
|
25 |
Piston Assembly-(Standard)-Used After Code Date 09041600-Used Before Code Date 11070100 |
|
25 |
Piston Assembly-(.020\" Oversize)-Used After Code Date 09041600-Used Before Code Date 11070100 |
|
25 |
Piston Assembly-(Standard)-Used Before Code Date 97011300 |
|
25 |
Piston Assembly-(.020\" Oversize)-Used Before Code Date 97011300 |
|
25 |
Piston Assembly-(.030\" Oversize)-Used Before Code Date 97011300 |
|
25 |
Piston Assembly-(Standard)-Used After Code Date 11063000 |
|
25 |
Piston Assembly-(.020\" Oversize)-Used After Code Date 11063000 |
|
25 |
Piston Assembly-(Standard)-Used After Code Date 97011200-Used Before Code Date 07090400 |
|
25 |
Piston Assembly-(.020\" Oversize)-Used After Code Date 97011200-Used Before Code Date 07090400 |
|
25 |
Piston Assembly-(Standard)-Used After Code Date 07090300-Used Before Code Date 09041700 |
|
25 |
Piston Assembly-(.020\" Oversize)-Used After Code Date 07090300-Used Before Code Date 09041700 |
|
26 |
Ring Set-(Standard)-Used After Code Date 09041600-Used Before Code Date 11070100 |
|
26 |
Ring Set-(.020\" Oversize)-Used After Code Date 09041600-Used Before Code Date 11070100 |
|
26 |
Ring Set-(Standard)-Used Before Code Date 97011300 |
|
26 |
Ring Set-(.020\" Oversize)-Used Before Code Date 97011300 |
|
26 |
Ring Set-(.030\" Oversize)-Used Before Code Date 97011300 |
|
26 |
Ring Set-(Standard)-Used After Code Date 97011200-Used Before Code Date 04031500 |
|
26 |
Ring Set-(.020\" Oversize)-Used After Code Date 97011200-Used Before Code Date 04102200 |
|
26 |
Ring Set-(Standard)-Used After Code Date 11063000 |
|
26 |
Ring Set-(.020\" Oversize)-Used After Code Date 11063000 |
|
26 |
Ring Set-(Standard)-Used After Code Date 04031400-Used Before Code Date 07090400 |
|
26 |
Ring Set-(.020\" Oversize)-Used After Code Date 04102100-Used Before Code Date 07090400 |
|
26 |
Ring Set-(Standard)-Used After Code Date 07090300-Used Before Code Date 09041700 |
|
26 |
Ring Set-(.020\" Oversize)-Used After Code Date 07090300-Used Before Code Date 09041700 |
|
27 |
Lock-Piston Pin-Used Before Code Date 97011300 |
|
27 |
Lock-Piston Pin-Used After Code Date 97011200 |
|
28 |
Pin-Piston-(.005\" Oversize)-Used Before Code Date 97011300 |
|
28 |
Pin-Piston-(Standard)-Used Before Code Date 97011300 |
|
28 |
Pin-Piston-(Standard)-Used After Code Date 97011200 |
|
29 |
Rod-Connecting-(Standard)-Used Before Code Date 97011300 |
|
29 |
Rod-Connecting-(Standard)-Used After Code Date 97011200 |
|
32 |
Screw-(Connecting Rod) |
|
32A |
Screw-(Connecting Rod)-Used After Code Date 00042200 |
|
33 |
Valve-Exhaust-Used After Code Date 11063000 |
|
33 |
Valve-Exhaust-Used Before Code Date 11070100 |
|
34 |
Valve-Intake-Used Before Code Date 11070100 |
|
34 |
Valve-Intake-Used After Code Date 11063000 |
|
35 |
Spring-Valve-(Intake) |
|
36 |
Spring-Valve-(Exhaust) |
|
40 |
Retainer-Valve |
|
43 |
Slinger-Governor/Oil |
|
45 |
Tappet-Valve |
|
46 |
Camshaft-Used Before Code Date 96060300 |
|
46 |
Camshaft-Used After Code Date 96060200 |
|
46A |
Camshaft-(Counterclockwise)-Used After Code Date 96060200 |
|
50 |
Manifold-Intake |
|
51 |
Gasket-Intake |
|
54 |
Screw-(Intake Manifold) |
|
83 |
Shaft-Auxiliary Drive |
|
101 |
Pin-Shaft |
|
146 |
KEY, Woodruff |
|
163 |
Gasket-Air Cleaner |
|
287 |
Screw-(Dipstick Tube) |
|
306 |
Shield-Cylinder |
|
306A |
Shield-Cylinder |
|
307 |
Screw-(Cylinder Shield) |
|
337 |
Plug-Spark-(EMS)-Used Before Code Date 11070100 |
|
337 |
Plug-Spark-(Resistor)-Used Before Code Date 11070100 |
|
337 |
Plug-Spark-Used After Code Date 11063000 |
|
358 |
Gasket Set-Engine-Used After Code Date 11063000 |
|
358 |
Gasket Set-Engine-Used Before Code Date 11070100 |
|
374 |
Washer-(Camshaft) |
|
377 |
Key-Woodruff |
|
383 |
Wrench-Spark Plug |
|
523 |
Dipstick |
|
524 |
Seal-Dipstick Tube |
|
525 |
Tube-Dipstick |
|
584 |
Cover-Breather Passage |
|
585 |
Gasket-Breather Passage |
|
617 |
Seal-O Ring-(Intake Manifold) |
|
635 |
BOOT, Spark Plug |
|
635A |
Boot-Spark Plug-(Snap In Style) |
|
635A |
Boot-Spark Plug-(Screw On Style) |
|
668 |
Spacer-(Includes 2) |
|
684 |
Screw-(Breather Passage Cover) |
|
715 |
Screw-(Stop Shaft) |
|
718 |
PIN, Locating |
|
721 |
Stop-Shaft |
|
741 |
Gear-Timing-(Uses Woodruff Key) |
|
741 |
Gear-Timing-(Use Without Woodruff Key)-Used Before Code Date 07100100 |
|
741 |
Gear-Timing-(Use Without Woodruff Key)-Used After Code Date 07093000-Used Before Code Date 08021800 |
|
741 |
Gear-Timing-(Plastic)-Used After Code Date 08021700 |
|
741 |
Gear-Timing-(Metal)-Used After Code Date 08021700 |
|
743 |
Gear-Drive-(Counterclockwise) |
|
842 |
SEAL, O-Ring-(Dipstick Tube) |
|
847 |
Dipstick/Tube Assembly |
|
868 |
Seal-Valve-Used After Code Date 11063000 |
|
868 |
Seal-Valve-Used Before Code Date 11070100 |
|
869 |
Seat-Valve-(Intake) |
|
870 |
Seat-Valve-(Exhaust) |
|
871 |
Bushing-Valve Guide-(Exhaust)-Used Before Code Date 11070100 |
|
871 |
Bushing-Valve Guide-Used After Code Date 11063000 |
|
871 |
Bushing-Valve Guide-(Intake)-Used Before Code Date 11070100 |
|
883 |
Gasket-Exhaust |
|
1019 |
Kit-Label |
|
1019 |
Kit-Label-(Touch N Mow) |
|
1058 |
Operator\'s Manual-Used Before Code Date 11070100 |
|
1058 |
Operator\'s Manual-Used After Code Date 11063000 |
|
1058 |
Operator\'s Manual-(Touch N Mow) |
|
1095 |
Gasket Set-Valve-Used After Code Date 11063000 |
|
1095 |
Gasket Set-Valve-Used Before Code Date 11070100 |
|
1102 |
Pilot-Guide |
|
1319 |
LABEL, Warning |
|
1330 |
Repair Manual |
