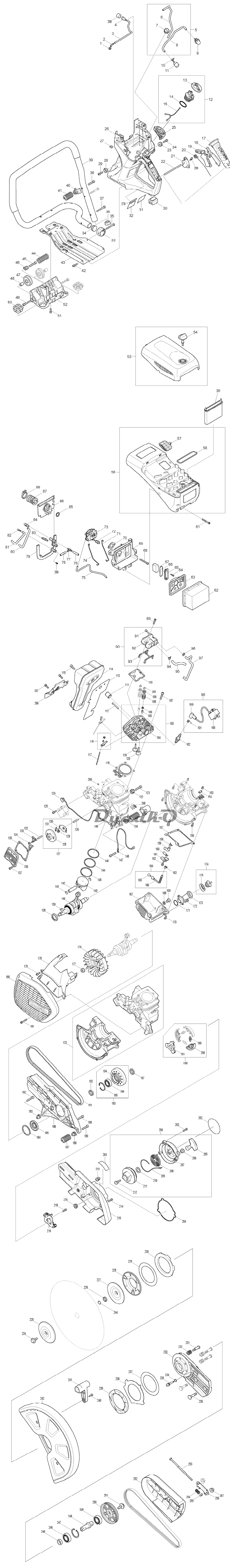

1 |
GROMMET |
|
2 |
HOSE JOINT 4-4 |
|
3 |
TUBE 3-190 |
|
4 |
BREATHER |
|
5 |
TUBE COMPLETE INC. 6-8 |
|
6 |
TUBE 3-120 |
|
7 |
GROMMET |
|
8 |
TUBE 3-300 |
|
9 |
PRIMER PUMP |
|
10 |
HOSE CLAMP |
|
11 |
GASOLINE FILTER |
|
12 |
TANK CAP COMPLETE INC. 13-15 |
|
13 |
TANK CAP KNOB |
|
14 |
O RING 29.5 |
|
15 |
STRAP |
|
16 |
TAPPING SCREW TORX 5.5X20 |
|
17 |
GRIP COVER |
|
18 |
LOCK OFF LEVER |
|
19 |
THROTTLE LEVER |
|
20 |
TORSION SPRING 12 |
|
21 |
SWITCH LEVER |
|
22 |
ROD 5 |
|
23 |
REAR INNER HOLDER |
|
24 |
TAPPING SCREW TORX 5.5X20 |
|
25 |
TANK GUARD |
|
26 |
TANK COMPLETE |
|
27 |
PLUG |
|
28 |
REAR INNER HOLDER |
|
29 |
TAPPING SCREW TORX 5.5X20 |
|
30 |
REAR FOOT |
|
31 |
EK7651H NAME PLATE |
|
33 |
CLAMP |
|
34 |
RUBBER CAP |
|
35 |
TAPPING SCREW 5.5X45 |
|
36 |
RUBBER CAP |
|
37 |
TAPPING SCREW 5.5X45 |
|
38 |
H.L. SOCKET HEAD BOLT M6X30 |
|
39 |
FRONT HANDLE |
|
40 |
CENTER OUTER HOLDER |
|
41 |
COMPRESSION SPRING 16 |
|
42 |
TAPPING SCREW TORX 5.5X20 |
|
43 |
BOTTOM PLATE |
|
44 |
COMPRESSION SPRING 13 |
|
45 |
H.L. SOCKET HEAD BOLT M6X30 |
|
46 |
FRONT INNER HOLDER |
|
47 |
ROLLER 45 |
|
48 |
SLEEVE 6.5 |
|
49 |
H.L. SOCKET HEAD BOLT M6X35 |
|
50 |
FRONT FOOT |
|
51 |
H.L. SOCKET HEAD BOLT M5X16 |
|
52 |
GUARD |
|
53 |
TOP COVER COMPLETE INC. 54 |
|
54 |
THUMB SCREW M6X15 |
|
56 |
FILTER COVER COMPLETE INC. 57,58 |
|
57 |
PLUG COVER |
|
58 |
PACKING |
|
61 |
H.L. SOCKET HEAD BOLT M5X40 |
|
62 |
AIR FILTER |
|
63 |
INNER FILTER |
|
64 |
TAPPING SCREW PT 3X20 |
|
65 |
SEPARATER COVER |
|
66 |
O RING 32 |
|
67 |
SEPARATOR MESH |
|
68 |
H.L. SOCKET HEAD BOLT M5X45 |
|
69 |
FILTER BRACKET |
|
70 |
CARBURETOR GASKET |
|
71 |
THROTTLE LINKAGE |
|
72 |
RUBBER JOINT |
|
73 |
CARBURETOR WT |
|
74 |
CHOKE LINKAGE |
|
75 |
TUBE 3-190 |
|
76 |
TUBE 3-35 |
|
77 |
HOSE JOINT |
|
78 |
TUBE 3-45 |
|
79 |
SEAL |
|
80 |
TUBE 3-130 |
|
81 |
TUBE 3-75 |
|
82 |
HOSE JOINT 4-4 |
|
83 |
HOSE JOINT 4-6 |
|
84 |
HOSE JOINT 4-6 |
|
85 |
GUIDE RING |
|
86 |
CARBURETOR MOUNT |
|
87 |
SUCTION LINE |
|
88 |
HOSE CLAMP 30 |
|
89 |
H.L. SOCKET HEAD BOLT M5X25 |
|
90 |
ROCKER COVER COMPLETE INC. 91-93 |
|
91 |
TUBE 3-8 |
|
92 |
ROCKER COVER |
|
93 |
OIL LINE |
|
94 |
HOSE CLAMP |
|
95 |
TUBE 5-70 |
|
96 |
HOSE CLAMP |
|
97 |
TUBE 3-170 |
|
98 |
IGNITION COIL ASSEMBLY INC. 99-101 |
|
99 |
PLUG CAP |
|
100 |
IGNITION COIL |
|
101 |
PLUG CAP SPRING |
|
102 |
SPARK PLUG |
|
103 |
CYLINDER HEAD ASSEMBLY INC. 104-106 |
|
104 |
CYLINDER HEAD COMPLETE |
|
105 |
VALVE GUIDE |
|
106 |
VALVE STEM SEAL |
|
107 |
H.L. SOCKET HEAD BOLT M6X35 |
|
108 |
COMPRESSION SPRING 11 |
|
109 |
RETAINER |
|
110 |
ROCKER COVER GASKET |
|
111 |
EXHAUST PORT SPACER |
|
112 |
PIN 5 |
|
113 |
MUFFLER GASKET |
|
114 |
EXHAUST MUFFLER |
|
115 |
H.L. SOCKET HEAD BOLT M6X18 |
|
116 |
ROCKER ARM ASSEMBLY |
|
117 |
PUSH ROD |
|
118 |
CYLINDER HEAD GASKET |
|
119 |
EXHAUST VALVE |
|
120 |
INTAKE VALVE |
|
121 |
H.L. SOCKET HEAD BOLT M6X30 |
|
122 |
CENTER INNER HOLDER |
|
123 |
CYLINDER BLOCK COMPLETE |
|
124 |
LEAD UNIT |
|
125 |
H.L. SOCKET HEAD BOLT M5X16 |
|
126 |
PIN 5 |
|
127 |
CAM GEAR ASSEMBLY INC. 128-131 |
|
128 |
CAM GEAR COMPLETE |
|
129 |
TORSION SPRING 9 |
|
130 |
CAM GEAR PLATE |
|
131 |
FLY WEIGHT |
|
132 |
PIN 5 |
|
133 |
CAM LIFTER L |
|
134 |
CAM LIFTER R |
|
135 |
CAM GEAR GASKET |
|
136 |
CAM GEAR COVER |
|
137 |
H.L. SOCKET HEAD BOLT M5X16 |
|
138 |
OIL SEAL 17 |
|
139 |
WOODRUFF KEY 4 |
|
140 |
CRANKSHAFT COMPLETE |
|
141 |
RING SPRING 12 |
|
142 |
PISTON PIN |
|
143 |
PISTON |
|
144 |
SECOND RING |
|
145 |
OIL RING |
|
146 |
TOP RING |
|
147 |
H.L. SOCKET HEAD BOLT M6X30 |
|
148 |
LEAD UNIT |
|
149 |
CONTACT SPRING |
|
150 |
REAR OUTER HOLDER |
|
151 |
COMPRESSION SPRING 16 |
|
152 |
H.L. SOCKET HEAD BOLT M6X30 |
|
153 |
CHECK VALVE |
|
154 |
GROMMET |
|
156 |
H.L. SOCKET HEAD BOLT M5X16 |
|
157 |
OIL CASE GASKET |
|
158 |
HOSE CLAMP |
|
159 |
TUBE 5-55 |
|
160 |
LEAD VALVE |
|
161 |
RETAINER PLATE |
|
162 |
H.L. SOCKET HEAD BOLT M5X16 |
|
163 |
HOSE CLAMP |
|
164 |
OIL TUBE COMPLETE INC. 165,166 |
|
165 |
OIL WEIGHT |
|
166 |
OIL TUBE |
|
167 |
OIL CASE |
|
168 |
GASKET |
|
169 |
HEX. BOLT M8X12 |
|
170 |
H.L. SOCKET HEAD BOLT M5X16 |
|
171 |
O-RING 20 |
|
172 |
H.L.S.H. BOLT M5X16 WITH WR |
|
173 |
OIL PIPE |
|
174 |
OIL CAP COMPLETE INC. 175 |
|
175 |
OIL CAP GASKET |
|
176 |
FLYWHEEL |
|
177 |
FLANGE NUT M10 |
|
178 |
CYLINDER COVER |
|
179 |
H.L. SOCKET HEAD BOLT M5X16 |
|
180 |
FAN COVER |
|
181 |
H.L. SOCKET HEAD BOLT M5X30 |
|
182 |
H.L. SOCKET HEAD BOLT M6X30 |
|
183 |
FRONT OUTER HOLDER |
|
184 |
FLAT WASHER 41 |
|
185 |
OIL SEAL(L) |
|
186 |
CUTTING ARM |
|
187 |
COMPRESSION SPRING 16 |
|
188 |
REAR OUTER HOLDER |
|
189 |
H.L. SOCKET HEAD BOLT M6X30 |
|
190 |
H.L. SOCKET HEAD BOLT M6X25 |
|
191 |
V BELT 5-800 |
|
192 |
SPACER17 |
|
193 |
CLUTCH DRUM ASSEMBLY INC. 194-196 |
|
194 |
CLUTCH DRUM |
|
195 |
RETAINING RING R-35 |
|
196 |
BALL BEARING 6003LLU |
|
197 |
SPACER17 |
|
198 |
CLUTCH COMPLETE INC. 199-201 |
|
199 |
TENSION SPRING 6 |
|
200 |
CLUTCH SHOE |
|
201 |
CLUTCH HOLDER |
|
202 |
EK7651H MODEL NO.LABEL |
|
203 |
H.L. SOCKET HEAD BOLT M5X18 |
|
204 |
STARTER ASSEMBLY INC. 205-212 |
|
205 |
STARTER KNOB |
|
206 |
ROPE GUIDE |
|
207 |
STARTER CASE |
|
208 |
SPIRAL SPRING |
|
209 |
STARTER ROPE |
|
210 |
ROPE STOPPER |
|
211 |
REEL |
|
212 |
SET SCREW M6X20 |
|
213 |
HOLDER |
|
214 |
H.L. SOCKET HEAD BOLT M5X20 |
|
215 |
CLUTCH COVER |
|
216 |
HEX. LOCK NUT M10-17 |
|
218 |
H.L. SOCKET HEAD BOLT M5X12 |
|
219 |
RATCHET COMPLETE |
|
224 |
HEX. BOLT M8X25 |
|
225 |
FLANGE 102 |
|
226 |
RING17 |
|
227 |
FLANGE 102 |
|
228 |
PRESSURE RING |
|
229 |
SLIDING DISC |
|
230 |
RUBBER RING(INNER) |
|
231 |
H.L.COLLRAR BOLT M6 |
|
232 |
COMPRESSION SPRING 8 |
|
233 |
CUTTING DEVICE |
|
234 |
O-RING 9 |
|
235 |
LOCK SHAFT |
|
236 |
HEX. BOLT M8 |
|
237 |
SLIDING DISC |
|
238 |
IMPACT PLATE |
|
239 |
RUBBER RING(OUTER) |
|
240 |
H.L.SOCKET HEAD BOLT M5X16 |
|
241 |
GRIP |
|
242 |
HOOD COMPLETE |
|
244 |
O RING 14 |
|
245 |
RING 17 |
|
246 |
BALL BEARING 6203LLU |
|
247 |
RETAINING RING R-40 |
|
248 |
SPINDLE |
|
249 |
BALL BEARING 6203LLU |
|
250 |
V PULLEY 5-95.8 |
|
251 |
HEX. BOLT M8X25 |
|
252 |
BELT COVER |
|
253 |
TENSIONING SCREW M6 |
|
254 |
COMPRESSION SPRING 6 |
|
255 |
SQUARE NUT M6 |
|
256 |
PLATE |
|
257 |
COLLARED HEX. NUT M8 |
|
258 |
SPONGE SLEEVE 9 |
|
259 |
PLATE |
|
260 |
CHECK VALVE |
|
261 |
DUST BAG |
|
262 |
RUBBER SLEEVE 22 |
|
263 |
CAUTION LABEL |
|
264 |
STARTER COVER GASKET |
|
265 |
COTTER |
|
266 |
MUFFLER GUARD |
|
267 |
H.L.S. HEAD BOLT M5X16 WITH WG |
|
268 |
JOINT PIPE |
|
269 |
BALL |
|
270 |
SERIAL NO. LABEL |
|
A01 |
TOOL KIT |
|
A02 |
OIL BOTTLE SET |
|
A03 |
WATER SET |
|
A04 |
PRE FILTER SET |
|
A05 |
RING SET |
|
E01 |
CAUTION PLATE |
|
E02 |
CAUTION TAG |
|
E03 |
CAUTION TAG |
