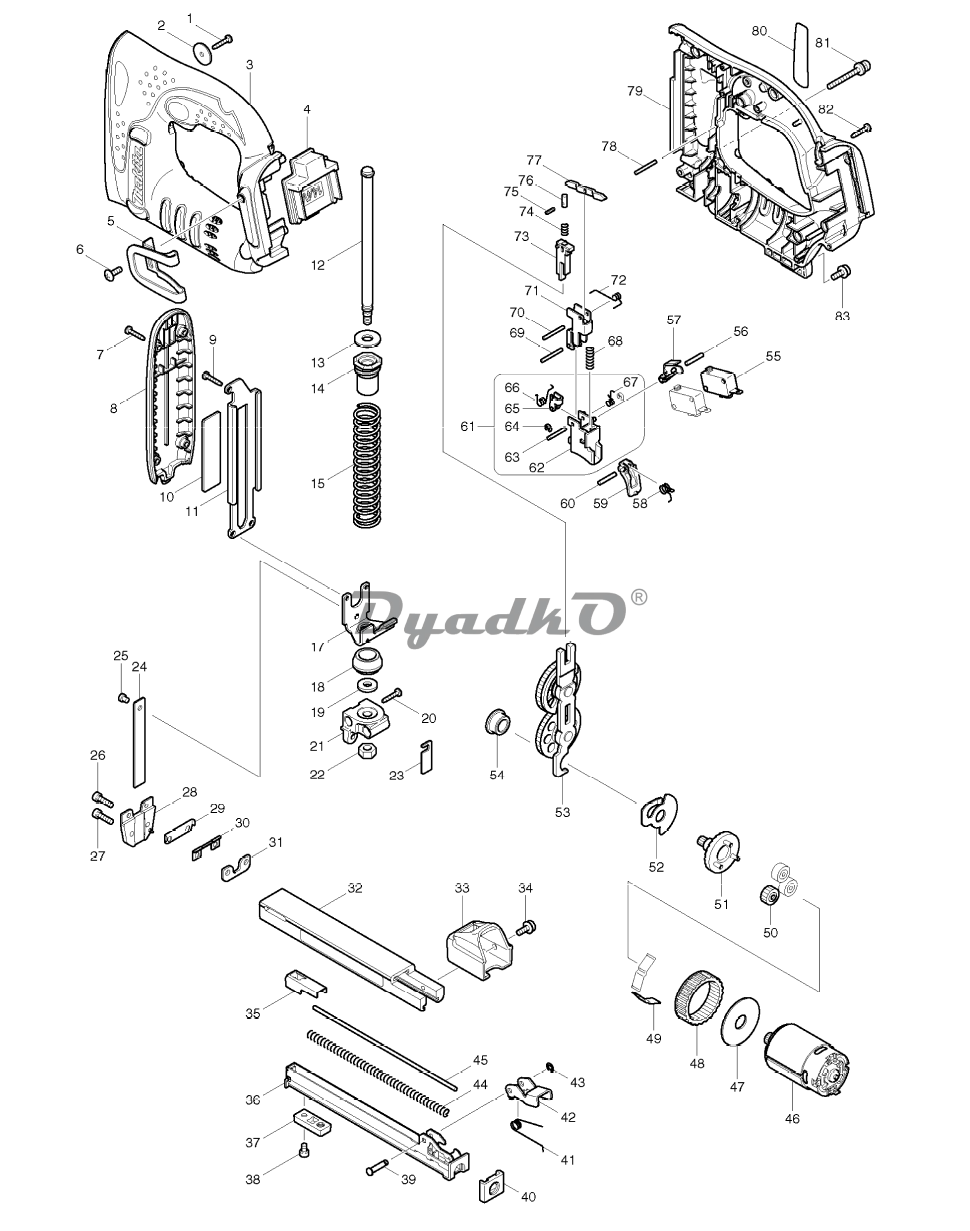

Схема MAKITA BST 110

1 TAPPING SCREW BIND PT 3X16
2 FLAT WASHER 4
3 HOUSING SET INC. 79
4 TERMINAL
5 HOOK
6 SCREW M4X12
7 TAPPING SCREW BIND PT 3X16
8 FRONT COVER
9 TAPPING SCREW BIND PT 3X16
10 UPPER PLATE
11 RAIL
12 GUIDE BOLT
13 FLAT WASHER 8
14 SPRING HOLDER
15 COMPRESSION SPRING 16
17 HAMMER
18 CUSHION
19 FLAT WASHER 6
20 TAPPING SCREW BIND PT 3X16
21 HOLDER
22 HEX. NUT M6
23 TRIGGER PLATE
24 DRIVER
25 PIN 4
26 HEX.SOCKET HEAD BOLT M4X14
27 HEX.SOCKET HEAD BOLT M4X14
28 DRIVER GUIDE COMPLETE
29 SPACER
30 SPACER PLATE
31 SET PLATE
32 MAIN MAGAZINE COMPLETE
33 END CAP
34 PAN HEAD SCREW M4X10
35 PUSHER
36 SUB MAGAZINE
37 FOOT
38 PAN HEAD SCREW M4X4
39 PIN 4
40 MAGAZINE END
41 TORSION SPRING 5
42 LEVER
43 STOP RING E-3
44 COMPRESSION SPRING 5
45 ROD
46 DC MOTOR
47 FLAT WASHER 12
48 INTERNAL GEAR 69
49 LEAF SPRING
50 SPUR GEAR 27
51 SPUR GEAR 7 COMPLETE
52 ANTI BACK PLATE
53 SPUR GEAR 55 COMPLETE
54 PLANE BEARING 10
55 SWITCH V-15-3A6
56 PIN 3
57 LINK PLATE
58 TORSION SPRING 4
59 SAFETY TRIGGER
60 PIN 3
61 TRIGGER SET INC. 62-67
62 TRIGGER
63 PIN 2.5
64 STOP RING E-2.0
65 SWING ARM
66 TORSION SPRING 3
67 TORSION SPRING 3
68 COMPRESSION SPRING 5
69 PIN 2.5
70 PIN 2.5
71 GUIDE PLATE
72 TORSION SPRING 4
73 CAM BLOCK
74 COMPRESSION SPRING 2.4
75 SPRING PIN 2-8
76 PUSH PIN
77 SWITCH ARM
78 PIN 2.5
79 HOUSING SET INC. 3
80 BST110 NAME PLATE
81 PAN HEAD SCREW M4X35
82 TAPPING SCREW BIND PT 3X16
83 PAN HEAD SCREW M4X10
A01 SAFETY GOGGLE
A02 PLASTIC CARRYING CASE COMPLETE
A03 BST110RFE PLASTIC CASE LABEL
A04 BATTERY BL1430 SET
A05 DC18RC FAST CHARGER
A06 BATTERY COVER
A07 BST110RFJ INDICATION LABEL
A08 BST110RFJ PLASTIC CASE LABEL
