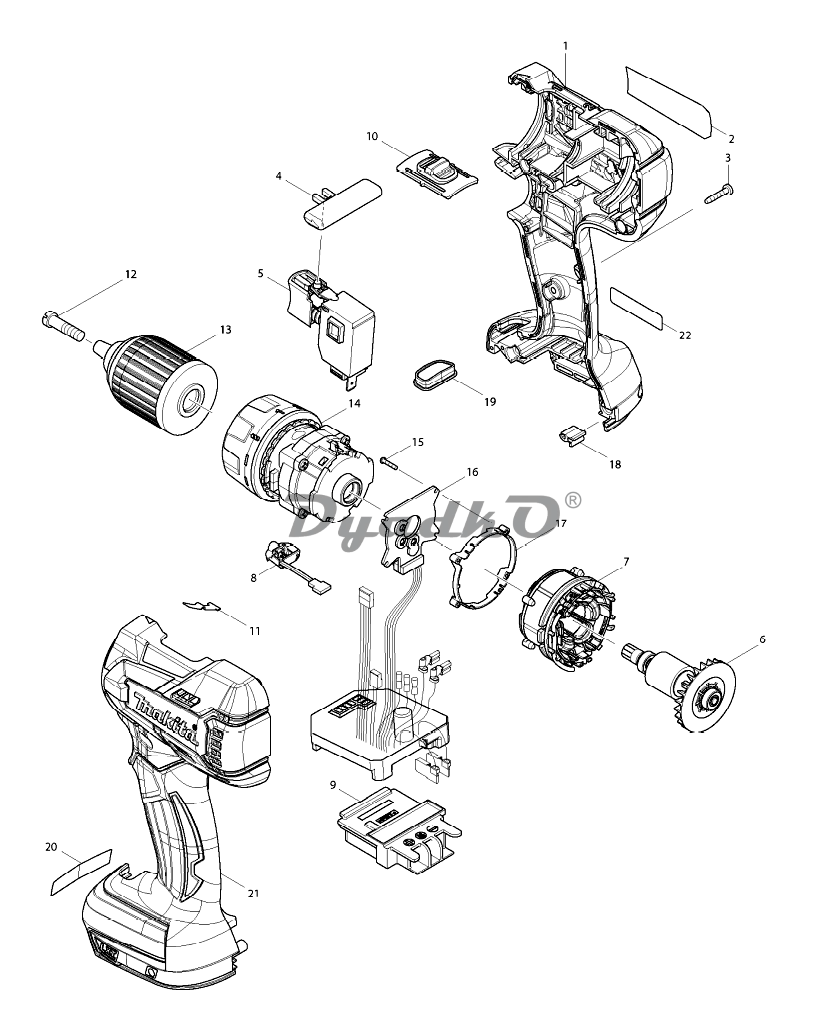

Схема MAKITA DDF 480
1
HOUSING SET INC. 21
2
DDF480 NAME PLATE
3
TAPPING SCREW 3X16
4
F/R CHANGE LEVER
5
SWITCH C3JW-4B
6
ROTOR
7
STATOR
8
LED CIRCUIT
9
TERMINAL
10
SPEED CHANGE LEVER ASSEMBLY
11
LEAF SPRING
12
FLAT HEAD SCREW M6X22
13
KEYLESS DRILL CHUCK 13
14
GEAR ASSEMBLY
15
PAN HEAD TAPPING SCREW 2X10
16
CONTROLLER
17
SUPPORT
18
CUSHION
19
INDICATOR PANEL COMPLETE
21
HOUSING SET INC. 1
A01
SCREW M4X12
A02
HOOK
HOOK
A03
BIT 2-45
A04
DC18RC FAST CHARGER
A05
BATTERY BL1840 SET
BATTERY BL1830 SET
BATTERY BL1820 SET
A06
BATTERY COVER
A07
PLASTIC CASE COMPLETE
