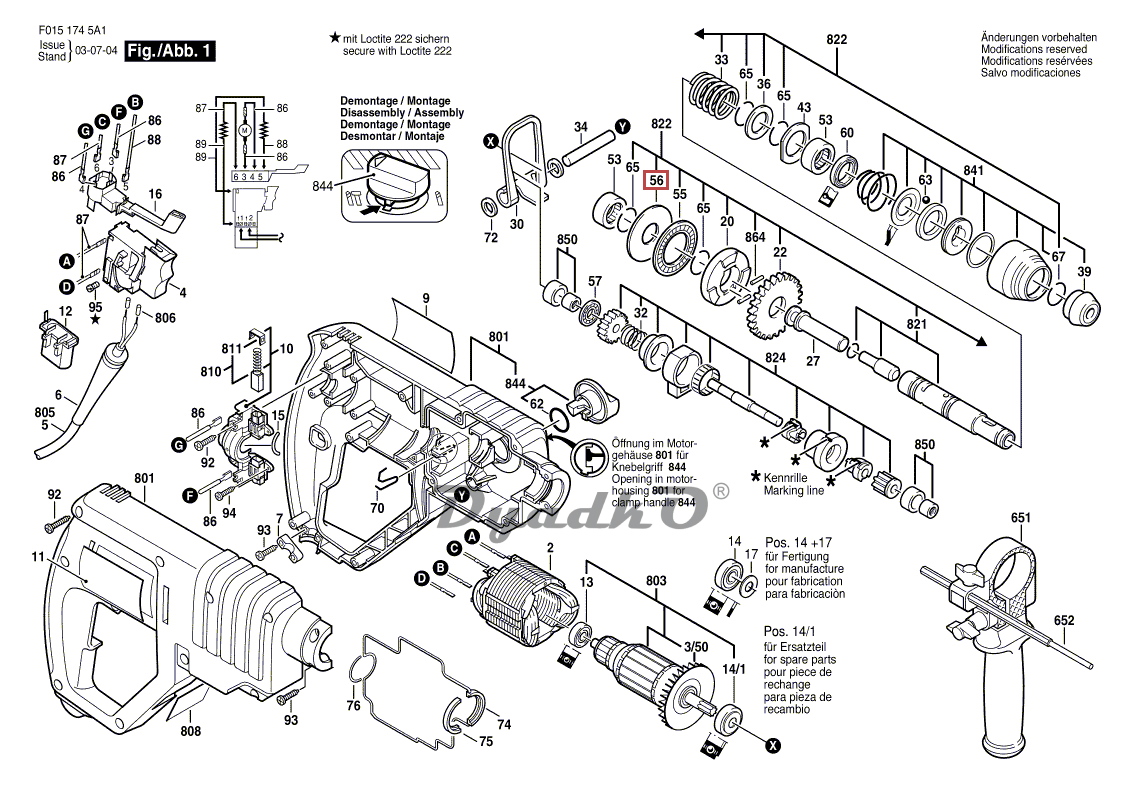

Схема (деталировка) перфораторы SKIL 1745 (F0151745A1). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

2	Field 220-240V
3/50	Fan
4	On-Off Switch
6	Grommet Ø7,3-Ø8,6x76 MM
7	Cable Clip
9	Manufacturer\'s nameplate
10	Brush Plate
11	Manufacturer\'s nameplate
12	Suppression Filter
13	Ball Bearing
14/1	groove ball bearing 9x24x7
15	Damping rubber
16	Change-Over Switch
20	Catch Disk
22	Cylindrical Gear Z=51
27	Striker
30	Drive Lever
32	Compression Spring
33	Compression Spring
34	Bearing Pin
36	Supporting Disc
39	Protective Cap SDS-PLUS
43	Supporting Disc
53	Needle bearing
55	Roller Thrust Bearing
56	Support Disc 1,0 MM THICK
57	Roller Thrust Bearing BLACK
60	Seal ring
62	O-Ring 18,0x2,5 MM
63	Ball DIN 5401-Ø7MM-III-ST
65	Retaining ring
67	Spring retaining ring
70	Contact Spring
72	Shim washer 1,0 MM THICK
74	Sealing Frame
75	Sealing Frame
76	Sealing Frame
86	Connecting Cable L=85 MM WHITE
87	Connecting Cable L=115MM BLUE
88	Connecting Cable L=88 MM WHITE
89	Cable L=173 MM WHITE
92	Tapping Screw DIN7981-ST3,9x22-C-Z
93	Tapping Screw DIN7981-ST3,9x16-C-Z
94	Torx Oval-Head Screw 3x10
95	Socket head cap screw M3x6,5-4.8
651	Auxiliary Handle
652	Depth-Gauge
801	Housing Section
803	Armature 220-230V
805	Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808	Nameplate 26x42 MM
810	Carbon-Brush Set
811	Ratchet Cap
821	Hammer Pipe SDS-PLUS
822	Hammer Pipe SDS-PLUS
824	Jack Shaft
841	Protection Sleeve SDS-PLUS
844	Clamp Handle
850	Bushing
864	Straight Pin DIN6325-2,5x12-RIKO
