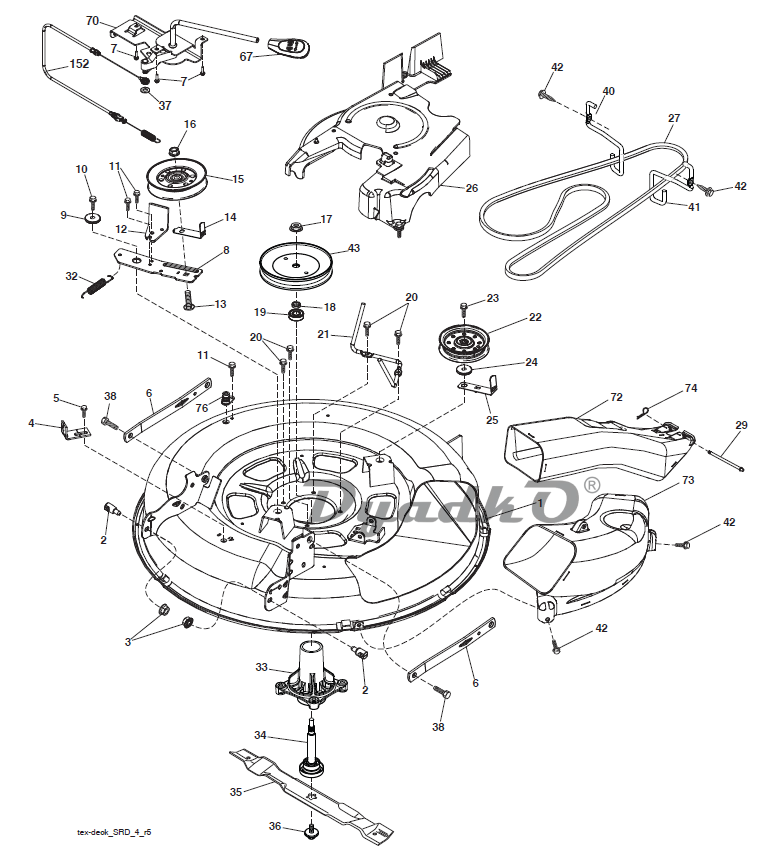

Схема (деталировка) тракторы садовые и райдеры PARTNER P11577RB (96041009402) 2010 Косильная дека. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Deck Weldment 30\"Srd
2	Stud Fastner W/\'D\'anti-Rotatio
3	Nut Lock Hex Flange 5/16 - 18
4	Bracket Clutch Cable
5	Bolt 5/16-18
6	Arm Susp Mower Rear Srd
7	Screw #10 x 0.750 BOS Thread
8	Arm Idler 30\"Srd
9	Spacer Retainer
10	Screw 3/8 - 16 X 1 Smgml Tap/R Blk
11	Screw Thd Roll 1/4 - 20 X 5/8
12	Arm Brake Mower 38\" RH Tex
13	Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
14	Keeper Belt Idler
15	Pulley Idler V-Groove Dim 4.25
16	Nut Lock FlG 3/8 - 16 unc
17	Nut Flange Lock Top
18	Washer Spacer Mandrel
19	Bearing Ball Mandrel
20	Screw Thd Roll Dod Pt Hex
21	Keeper Belt Mandrel 30\"
22	Pulley Idler Flat Unplated
23	Screw Thdrol 3/8 - 16 X 1-3/4
24	Washer 13/32 X 1 - 1/4 X 12 Ga
25	Keeper Belt 30\"Srd
26	Cover Mandrel Mwr 30\"Black
27	V-Belt Drive
29	Hinge Pin
32	Spring Return Deck 38/46\"
33	Housing Mandrel 4pt Service
34	Shaft Asm Mndrl N/Greaseable38
35	Blade Mower Bagging Srd
36	Bolt/Washer Asm 7/16 - 20 unf
37	Washer 13/32 x 13/16 x 16 Ga.
38	Bolt Shoulder
40	Keeper Belt Engine LH
41	Keeper Belt Engine RH
42	ScrewHexwshTHDR3/8-16x3/4BL
43	Pulley Mandrel 6 5 Pd 30\"
67	Handle clutch cable
70	Clutch Asm. Manual
72	Chute Upper SRD 30R
73	Chute Lower SRD 30R
74	Retainer Spring
76	Port Washout
152	Manual Clutch Cable
- -	Mandrel Assembly (Includes Hous-ing, Shaft Assembly, And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included)
- -	Replacement Mower Complete
