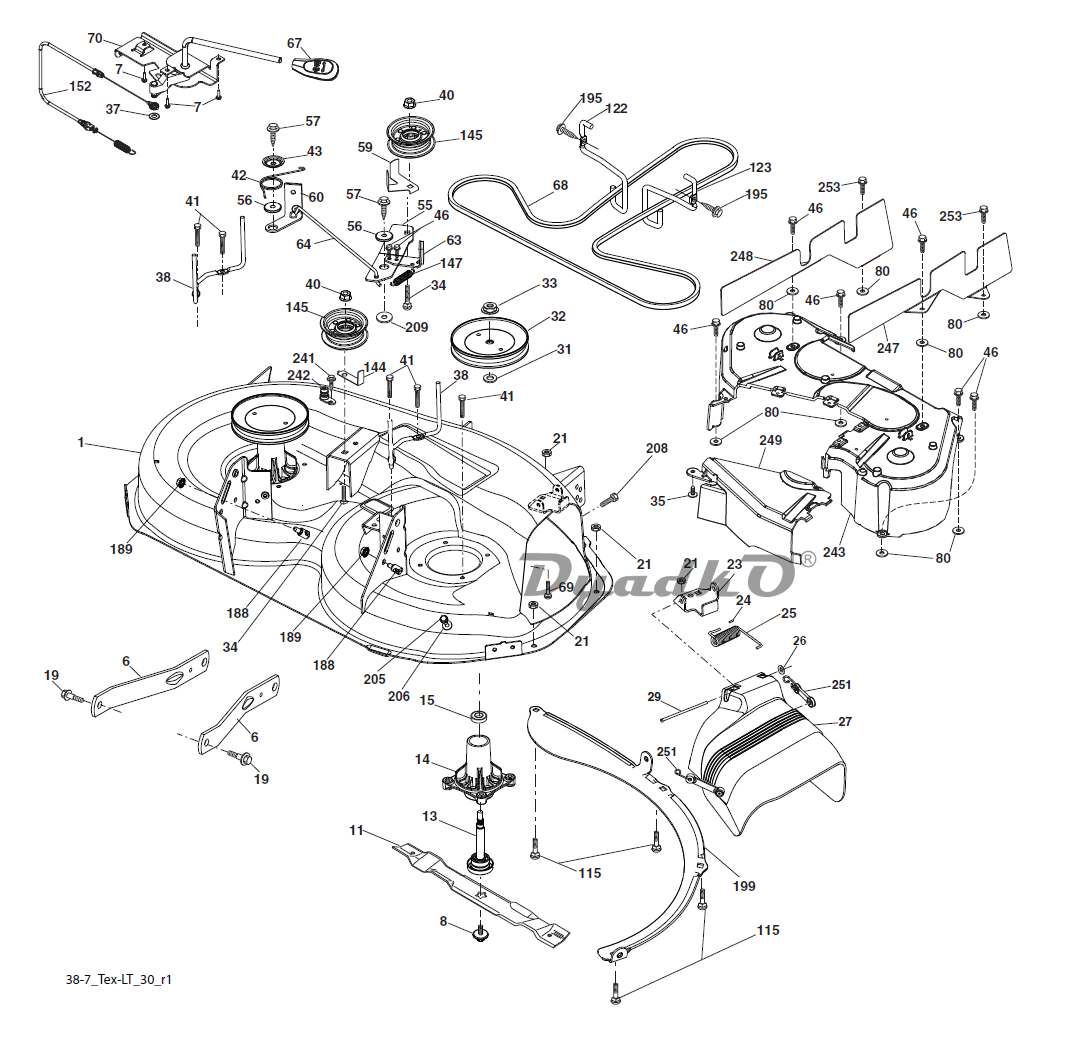

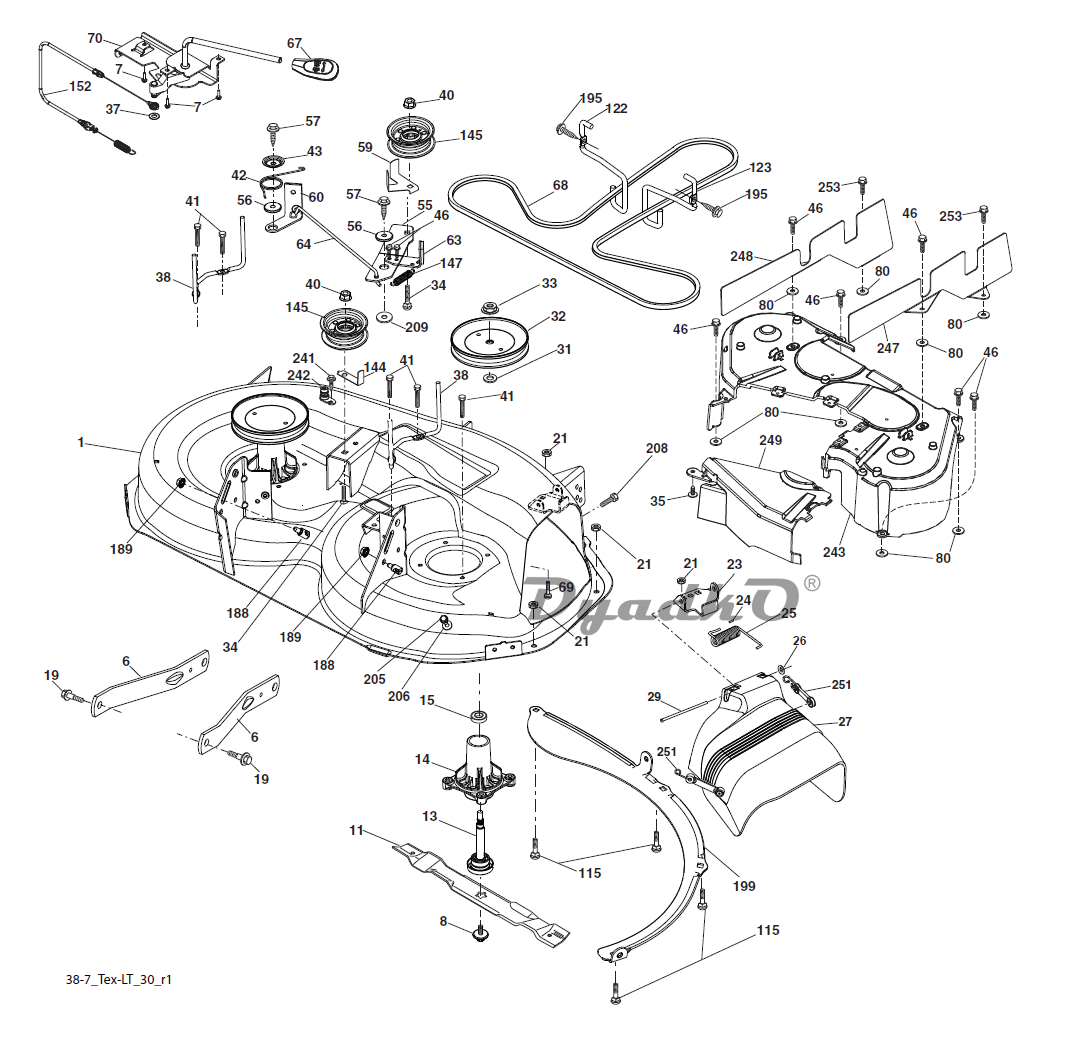

Схема HUSQVARNA TS 138 (96041036700) Косильная дека

1 Mower Housing
6 Arm Suspension
7 Screw #10 x BOS Thread
8 Bolt/Washer Asm. 7/16-20 unf
11 Blade 38\" 3NI Premium
13 Shaft Assembly, Mandrel
14 Housing, Mandrel
15 Bearing, Ball, Mandrel
19 Bolt, Shoulder
21 Nut, Crownlock 5/16-18 unc
23 Bracket, Deflector
24 Cap, Sleeve
25 Spring, Torsion, Deflector
26 Nut, Push
27 Shield, Deflector
29 Rod, Hinge
31 Washer, Spacer
32 Pulley, Mandrel
33 Nut, Toplock, Flanged
34 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
35 Fastener, Christmas Tree
37 Washer
38 Keeper Belt LH Mandrel
40 Nut, Lock Flg. 3/8-16 unc
41 Bolt Hex 313 - 18 x 1.19
42 Spring Torsion Brake
43 Spring Torsion Retainer
46 Screw 1/4-20 x 5/8
55 Arm, Idler
56 Spacer, Retainer
57 Screw 3/8-16 x 1
59 Guard, Tuv. Idler
60 Arm Brake Mower
63 Arm Brake Mower
64 Link Brake
67 Handle Clutch Cable
68 V-Belt
69 Bolt
70 Clutch Asm. Manual
80 Pal Nut
115 Bolt Carr. 5/16-18x5 18 Short
122 Keeper Belt Engine LH
123 Keeper Belt Engine RH
144 Keeper Belt
145 Pulley, Idler, Flat
147 Spring Return
152 Manual Clutch Cable
188 Stud Fastener
189 Nut Lock Hex Flange
195 Screw 3/8-16 x 3/4
199 Baffle Vortex
205 Screw 1/4-20 x 1
206 Washer 9/32 x 7/8 x 16 Ga.
208 Screw 3/8-16 x 1/2
209 Washer 13/32 x 2 x 10
241 Screw TT #10-32.5 3/8 Flange
242 Port Washout
243 Cover Assy
247 Shield Deck RH Assy
248 Shield Deck LH Assy
249 Cover Cable Clutch
251 Kit Bungee (Includes Phillips head screw, weld nut, screw, bungee latch, and bungee strap)
253 Rivet
- - MandrelAssembly(Includeshousing (key# 14), shaft assembly (key# 13), and bearing (key# 15) only - pulley/ nut/washer and blade bolt/washers
- - Replacement Mower, Complete
