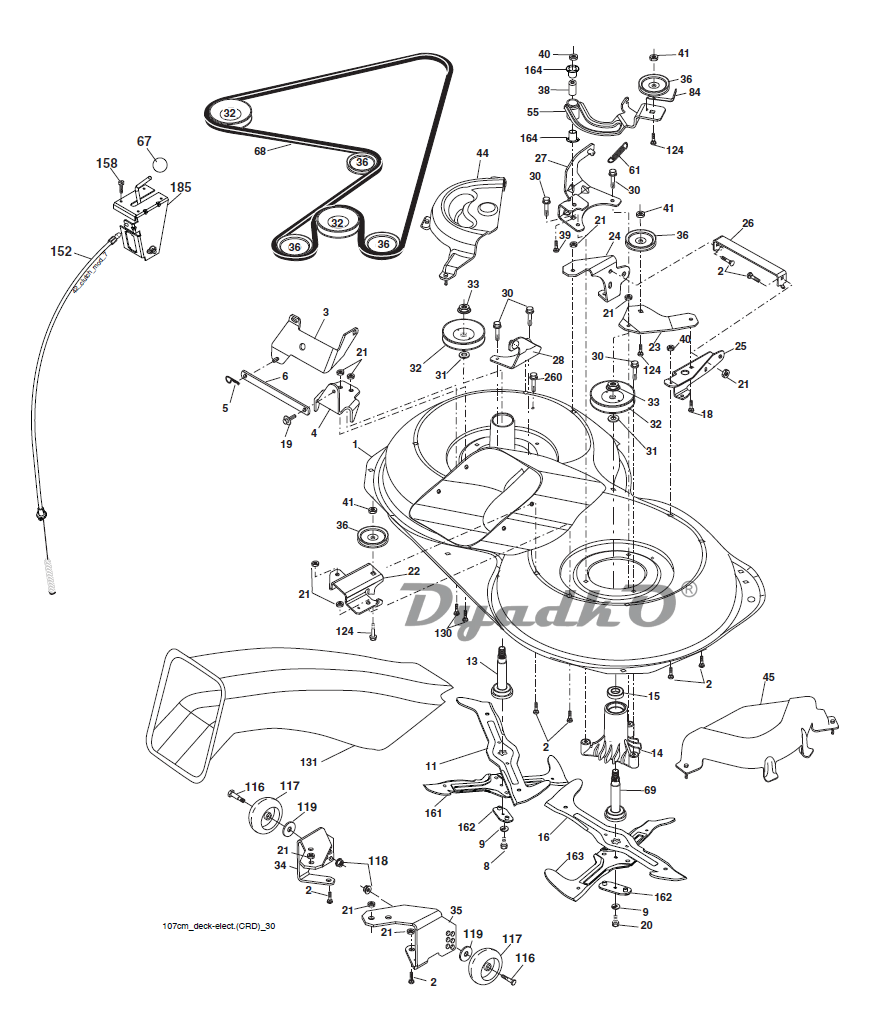

Схема PARTNER P200107HRB (96061017804) MOWER DECK

1 Housing Asm. Mower
2 Bolt Rdhd Sqnk 5/16-18 unc x 3/4
3 Bracket Asm. S-Bar Chass
4 Bracket Bar Sway Deck
5 Retainer Spring
6 Bar Sway
8 Bolt 3/8-24 x 1.25 Gr. 8 Patched
9 Washer Lock Hvy 3/8 Unplated
11 Blade 3-1 LH
13 Shaft Asm. w/Lower Bearing
14 Housing Mandrel Vented (Machd)
15 Bearing Ball Mandrel
16 Blade 3-1 Rh
18 Bolt Rdhd Sqnk 3/8-16 x 3/4 Gr. 5
19 Bolt Shoulder 5/16-18 Thd Form
20 Bolt 3/8-24 x 1.25 Gr. 8 Ptch Lhthd
21 Nut Crown Lock 5/16-18
22 Bracket Idler Sprt RR
23 Bracket Idler Sprt RF
24 Bracket Suspension LF
25 Bracket Suspension RF
26 Brace Support Susp Frt CRD
27 Bracket Asm. Susp RR
28 Bracket Asm. Susp LR
30 Screw Thd Rolling Dod.PT Hex
31 Washer Spacer Mower Vented
32 Mandrel Pulleys
33 Nut Flg Top Lock
34 Bracket Gauge Wheel LF
35 Bracket Gauge Wheel RF
36 Pulley Idler V-Groove Dim 4.25
38 Spacer Hub Arm Idler
39 Bolt RhHd 3/8-16 unc x 2-3/4 Gr.5
40 Nut Crownlock 3/8-16 unc
41 Nut Flangelock 3/8-16 unc
44 Cover Mandrel LH
45 Cover Mandrel RH
55 Arm Idler
61 Spring Tension
67 Knob
68 Hex-Belt Mower
69 Shaft Asm W/Lwr Brg RH Thd CRD
84 Keeper Belt Idler
116 Bolt Shoulder
117 Wheel Gage
118 Nut Centerlock 3/8-16 unc
119 Washer 13/32 x 1-1/4 x 12
124 Bolt Carr Sh 3/8-16 x 1-1/2 Gr5
130 Bolt Rdhdsqnk 5/16-18 unc x 3/4
131 Chute Bagger CRD 92cm
152 Cable Clutch
158 Screw 1/4-20 x 1/2
161 Blade Cross LH 107
162 Adapter Weldment Blade 107
163 Blade Cross RH 107
164 Bearing
185 Head Asm Cable Clutch
260 Screw Thdrol 3/8-16 x 1/2
