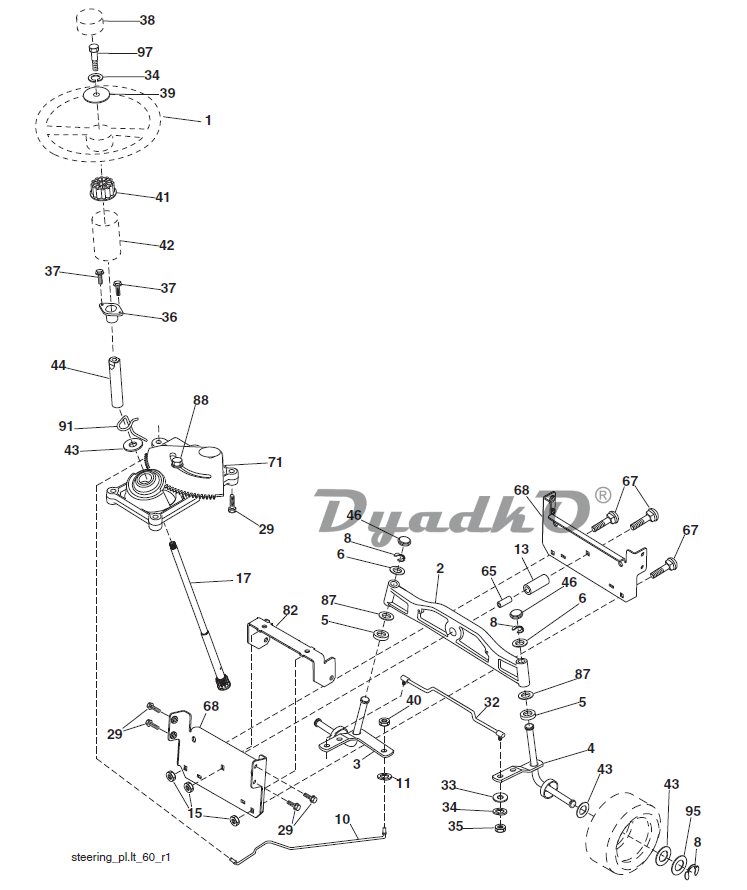

Схема (деталировка) тракторы садовые и райдеры PARTNER P200107HRB (96061017804) STEERING ASSEMBLY. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Steering Wheel
2	Front Axle Assembly
3	Spindle Assembly, L.H.
4	Spindle Assembly, R.H.
5	Bearing, Race, Thrust, Hardened
6	Washer 25/32 x 1-5/8 x 16 Ga.
8	Ring, Klip
10	Link, Drag
11	Washer, Lock
13	Spacer Axle
15	Nut Flange Lock 3/8-16 unc
17	Shaft Assembly, Steering
29	Screw 3/8-16 x 3/4
32	Rod, Tie
33	Washer 11/32 x 3/4 x 16 Ga.
34	Washer Lock Hvy Hlcl Spr 5/16
35	Crownlock Nut 5/16-24 unf
36	Bushing, Steering
37	Screw TT #I0-32 x 5 x 3/8 Flange
38	Cap Wheel Steering
39	Washer 11/32 x 2-3/8 x 12 Ga.
40	Nut Crownlock 3/8-24
41	Adaptor, Steering Wheel
42	Boot, Steering Dash P/L Mtl
43	Washer 25/32 x 1-1/4 x 16 Ga.
44	Extension Steering
46	Cap, Spindle
65	Spacer Axle
67	Bolt Rdhd Sq 3/8-16 x 2-1/4
68	Brace Axle
71	Steering Asm.
82	Bracket Susp. Chassis Front
87	Washer Flat .781 x 1-1/2 x .14
88	Bolt Shoulder 7/16-20 unc
91	Clip Steering
95	Washer Hardened
97	Bolt 5/16-18 Fin Hx 5/16-18 x 4 w/Patch
