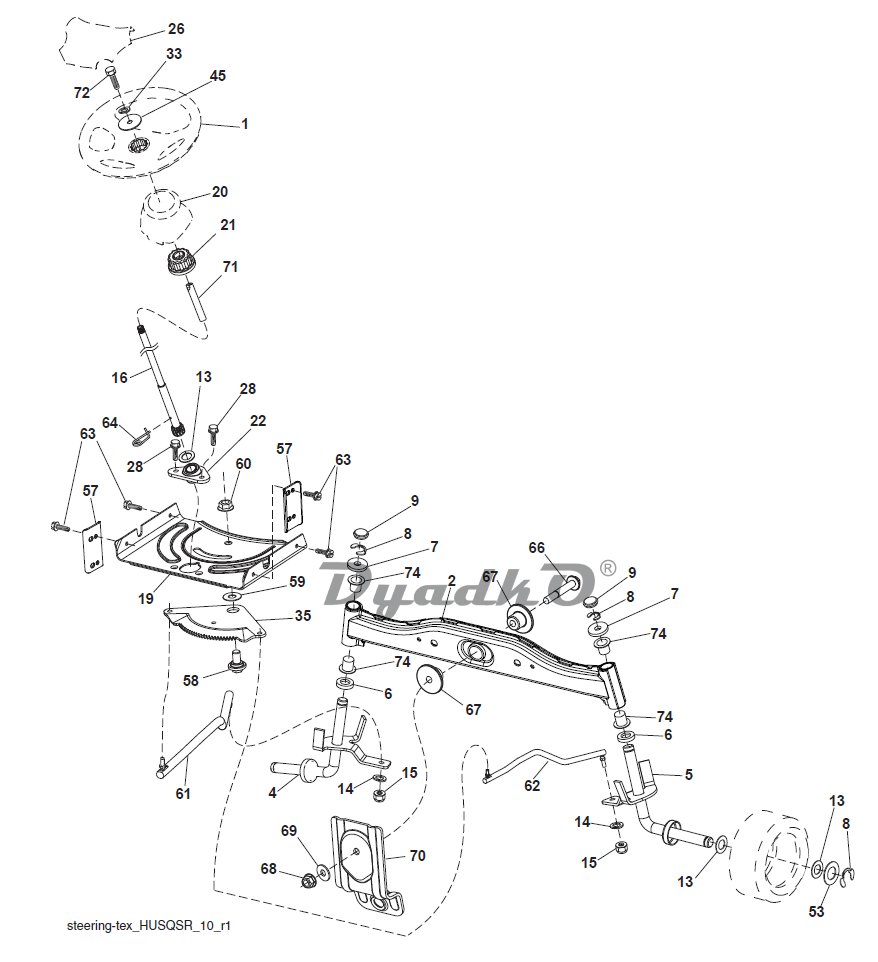

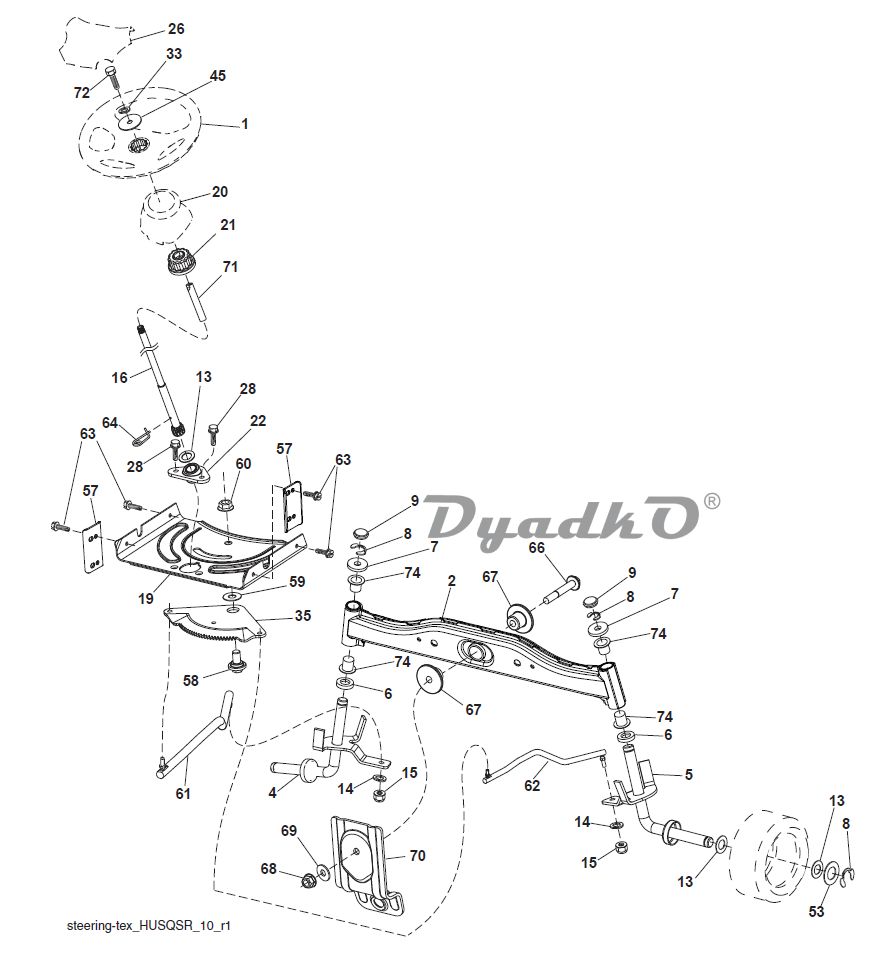

Схема (деталировка) тракторы садовые и райдеры HUSQVARNA LT151 (96041001805) 2010 Рулевая. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Wheel, Steering Husq SR
2	Axle Asm., Front
4	Spindle Asm., LH
5	Spindle Asm., RH
6	Washer Thrust
7	Washer 25/32 x 1-5/8 x 16 Ga.
8	Ring, Clip #T5304-75
9	Cap, Spindle
13	Washer 25/32 x 1-1/4 x 16 Ga.
14	Washer, Lock Hvy. Hlcl. Spr. 3/8
15	Nut, Crown Lock 3/8-24 unf
16	Shaft Steering
19	Plate Steering
20	Boot, Steering
21	Adapter, Wheel Steering
22	Supt. Strg. Lower
26	Insert, Wheel Steering Husq SR
28	Screw 3/8-16 x 3/4
33	Washer Lock 5/16
35	Gear, Sector Plate
45	Washer 11/32 x 3/8 x 12 Ga.
53	WasherHardened .793x 1.637x .060
57	Bracket Upstop
58	Bolt Shoulder Sector Pivot CFM
59	Washer Thrust Sector Steering
60	Nut Flange Lock 5/8-11
61	Draglink LH
62	Draglink, RH
63	Screw 5/16-18 x 3/4
64	Retainer Clip Spring Steering
66	Bolt Hex Fghd. 7/16-14 x 3 Serr.
67	Bushing PM Front Axle
68	Nut Lock Flange 7/16-14 Gr. 5
69	Washer1.5x.505x.118
70	Bracket Deck Susp. Front
71	Shaft Extension Steering
72	Bolt 5/16-18x4 w/Patch
74	Bearing
