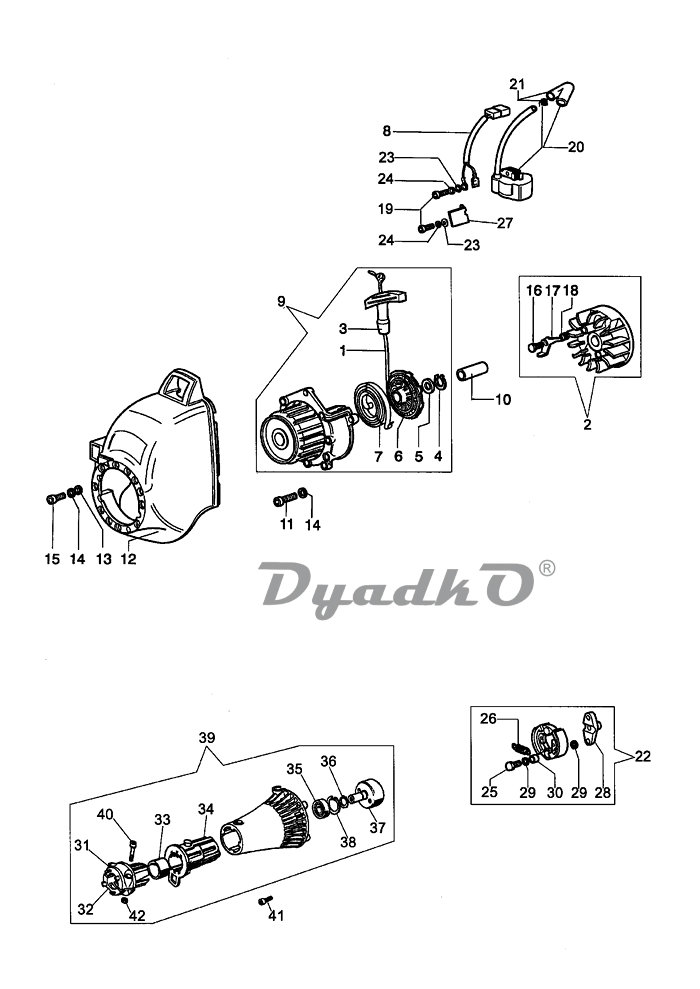

| 1 | Starter rope |
| 2 | Flywheel |
| 3 | Starter handle |
| 4 | Ring |
| 5 | Ring |
| 6 | Pulley |
| 7 | Spring |
| 8 | Cable |
| 9 | Starter assy |
| 10 | Spacer |
| 11 | Screw |
| 12 | Starter case |
| 13 | Washer |
| 14 | Grower |
| 15 | Screw |
| 16 | Pin |
| 17 | Pawl |
| 18 | Spring |
| 19 | Screw |
| 20 | Ignition coil |
| 21 | Spark plug cap |
| 22 | Clutch |
| 23 | Washer |
| 24 | Washer |
| 25 | Screw |
| 26 | Spring |
| 27 | Deflector |
| 28 | Clutch driver |
| 29 | Washer |
| 30 | Bushing |
| 31 | Adaptor |
| 32 | Adaptor |
| 33 | Bushing |
| 34 | Sleeve |
| 35 | Bearing |
| 36 | Ring |
| 37 | Clutch drum |
| 38 | Ring |
| 39 | Clutch cover |
| 40 | Screw |
| 41 | Screw |
| 42 | Nut |
