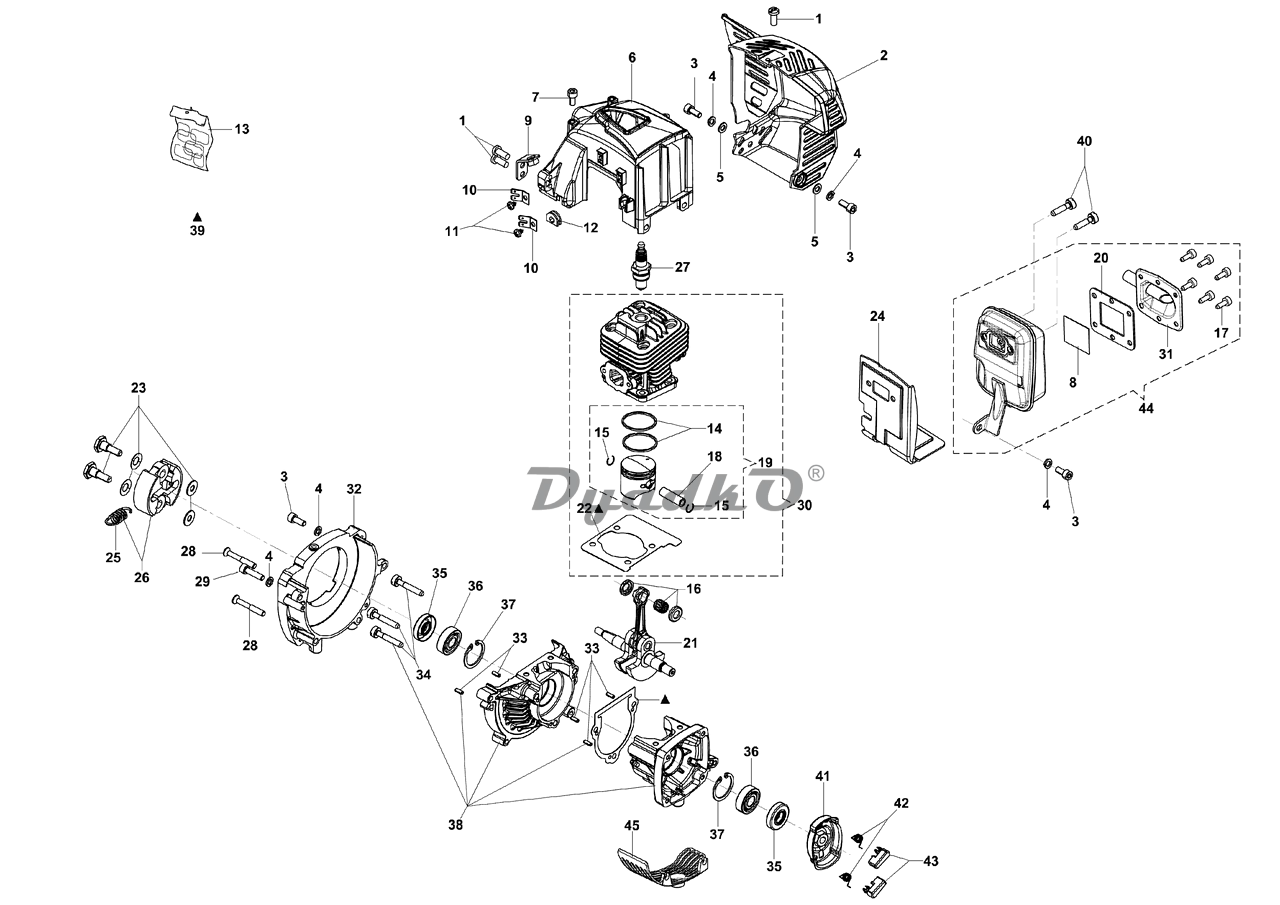

| 1 | Screw |
| 2 | Exhaust guard |
| 3 | Screw |
| 4 | Grower |
| 5 | Washer |
| 6 | Engine cover Red |
| 7 | Screw |
| 8 | Not available for this product Only for EPA1 version |
| 9 | Plate |
| 10 | Plate |
| 11 | Screw |
| 12 | Grommet |
| 13 | Labels kit |
| 14 | Piston ring |
| 15 | Ring |
| 16 | Set roller cage and washer |
| 17 | Screw |
| 18 | Piston pin |
| 19 | Piston assy Ø32 |
| 20 | Gasket |
| 21 | Shaft |
| 22 | Gasket |
| 23 | Kit pin + Belleville washer + spacer ring |
| 24 | Deflector |
| 25 | Spring |
| 26 | Clutch |
| 27 | Spark plug |
| 28 | Screw |
| 29 | Screw |
| 30 | Complete cylinder Ø32 |
| 31 | Cover |
| 32 | Flange |
| 33 | Plug |
| 34 | Screw |
| 35 | Ring |
| 36 | Bearing |
| 37 | Ring |
| 38 | Crankcase assy |
| 39 | Gasket set |
| 40 | Screw |
| 41 | Clutch driver |
| 42 | Spring |
| 43 | Pawl |
| 44 | Complete muffler EURO1 |
| 44 | Complete muffler EPA1 |
| 45 | Grid |
