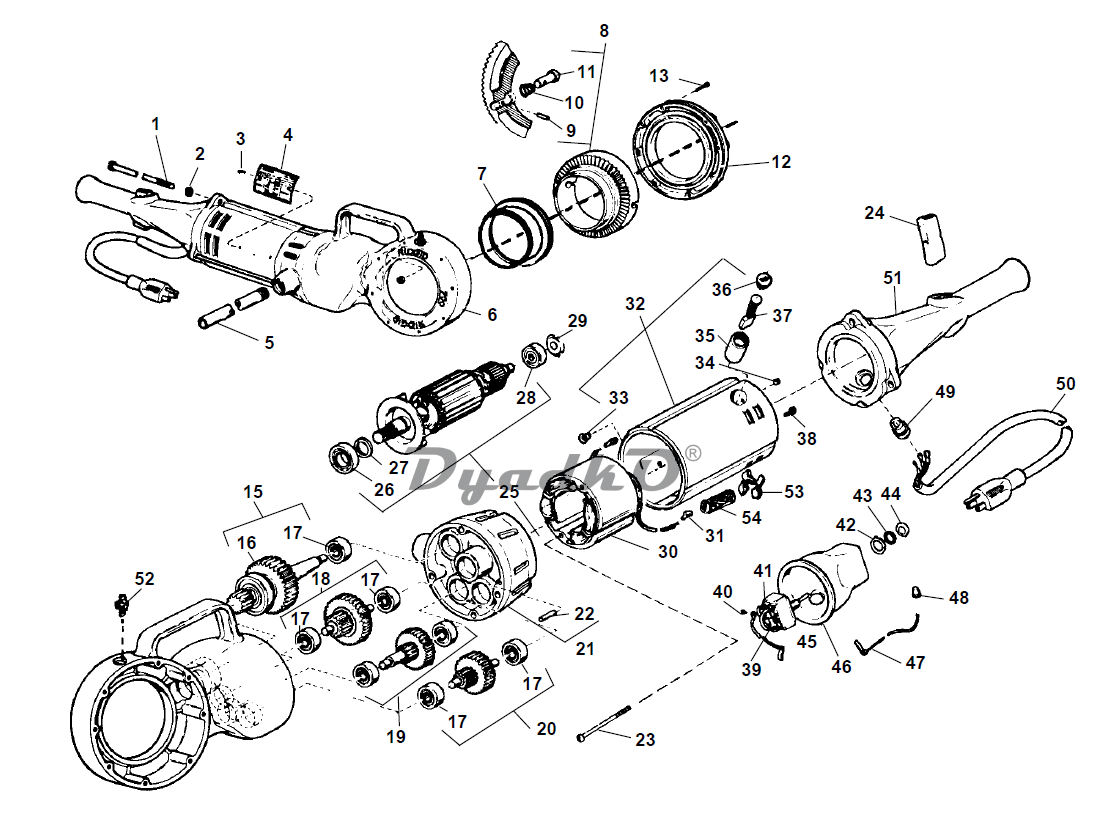

Схема (деталировка) клуппы резьбонарезные электрические RIDGID 700 Корпус. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	E-1893 Tie Bolt (4)
2	E-1719 Lock Washer (4)
3	E-10006 Pop Rivet (2)
4	Name Plate (115V)
5	E-833 Torque Arm
6	B-190-X Gear Case Assembly (Includes Ref. 7,13,14, 52)
7	D-751 Bearing
8	C-375-X Face Gear Assembly
9	E-6085 Spring Pin (2)
10	E-1967 Spring (2)
11	E-1966 Adapter Pawl (2)
12	C-306 Cover
13	E-897 Screw (8)
14	E-2870 Lock Nut (8)
15	E-1960-X 4th Gear Assembly
16	E-3215 Bearing
17	E-2630 Bearing (7)
18	E-1903-X 3rd Gear Assembly
19	E-1901-X 1st Gear Assembly
20	E-1902-X 2nd Gear Assembly
21	C-305-X Fan Housing Assembly
22	E-2893 Dowel Pin
23	E-1495 Field Mtg. Screw (2)
24	E-10649 Switch Button
25	D-750-X Armature & Fan Assy. (115V)
26	E-1497 Bearing
27	E-1340 Retaining Ring
28	E-1880 Bearing
29	E-1894 Load Spring
30	D-755 Field (115V) (Incl. Ref. No. 31)
31	E-1068 Ring Tongue Terminal (2)
32	B-191-X Motor Housing Assembly
33	E-1882 Lock Screw
34	E-3145 Set Screw (2)
35	E-1895 Brush Holder (2)
36	E-4404 Brush Cap (2)
37	E-1900-X Brush Assembly (2)
38	E-3467 Ground Screw
39	E-1964 Switch
40	E-5367 Screw (5)
41	E-1957 Jumper (2)
42	E-1953 Lock Ring
43	E-1961 Lock Washer (Internal Tooth)
44	E-799 Lock Nut
45	E-1954 Brush Lead (Blue)
46	C-370 Switch Insulator
47	E-1956 Brush Lead (White)
48	E-1517 Wire Nut
49	E-889 Cord Retainer
50	D-1298 Service Cord (115V)
51	Handle
52	E-912 Grease Fitting
53	“X” Washer
54	Insulator Tube
55	Grease
	D-747 Service Cord (230V)
	D-2364 Field (230V) (Incl. Ref. No. 31)
	Name Plate (230V)
	D-758-X Armature & Fan Assy. (230V)
