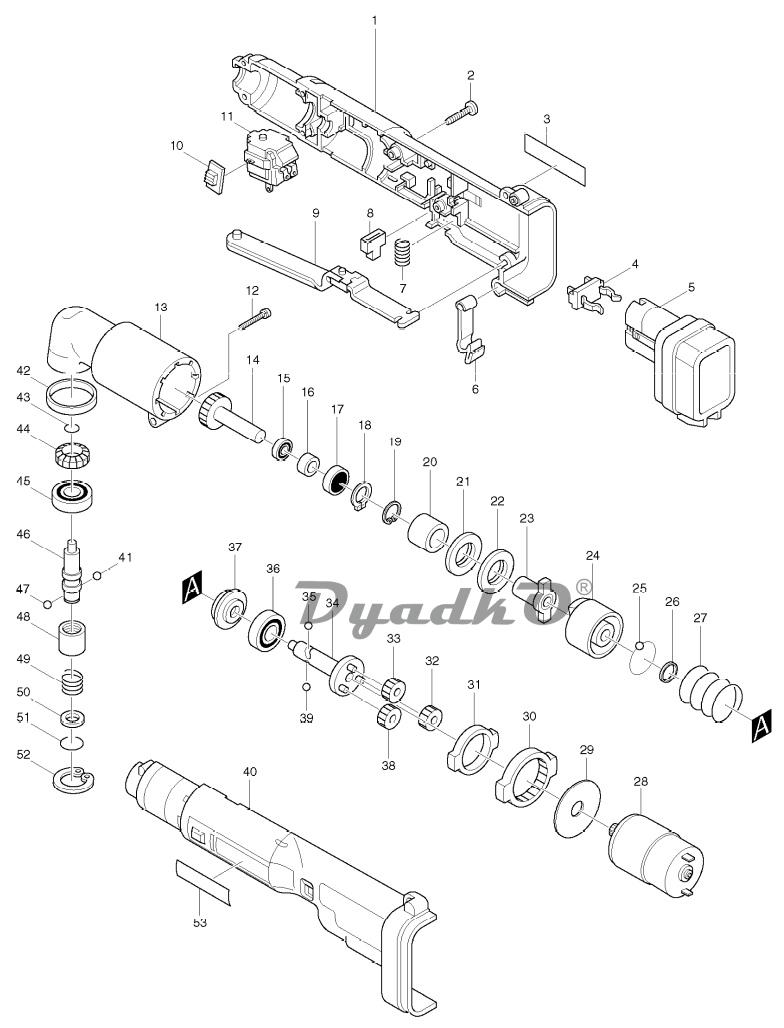

Схема MAKITA 6940 D
1
HOUSING SET INC. 40
2
TAPPING SCREW BT4X20
3
NAME PLATE 6940D
4
BATTERY HOLDER
5
BATTERY 9100 SET
6
SET PLATE
7
COMPRESSION SPRING 6
8
SWITCH LEVER
9
LEVER COMPLETE
10
LEVER
11
SWITCH
12
+ HEX. BOLT M5X30
13
ANGLE HEAD COMPLETE
14
ZEROL BEVEL GEAR 13
15
BALL BEARING 6000
16
SLEEVE 10
17
BALL BEARING 6000LLB
18
RETAINING RING S-10
19
RETAINING RING R-26
20
SLEEVE 15
21
RUBBER WASHER 21
22
FLAT WASHER 15
23
ANVIL
24
HAMMER
25
STEEL BALL 3.5
26
FLAT WASHER 20
27
COMPRESSION SPRING 22
28
DC MOTOR 9.6V
29
FLAT WASHER 12
30
INTERNAL GEAR 69
31
RING 32
32
SPUR GEAR 29
33
SPUR GEAR 29
34
SPINDLE COMPLETE
35
STEEL BALL 4.8
36
BALL BEARING 6000 фото1 фото2
37
WASHER 10
38
SPUR GEAR 29
39
STEEL BALL 4.8
40
HOUSING SET INC. 1
41
STEEL BALL 3.5
42
RUBBER RING 31
43
RING SPRING 9
44
ZEROL BEVEL GEAR 13
45
BALL BEARING 6001DDW
46
SPINDLE M
47
STEEL BALL 3.5
48
SLEEVE
49
COMPRESSION SPRING 13
50
FLAT WASHER 12
51
RING SPRING 11
52
RETAINING RING R-28
53
MAKITA LABEL
54
LINE FILTER
A01
BATTERY COVER
A03
PLASTIC CARRING CASE
B01
DC1414 BATTERY CHARGER
