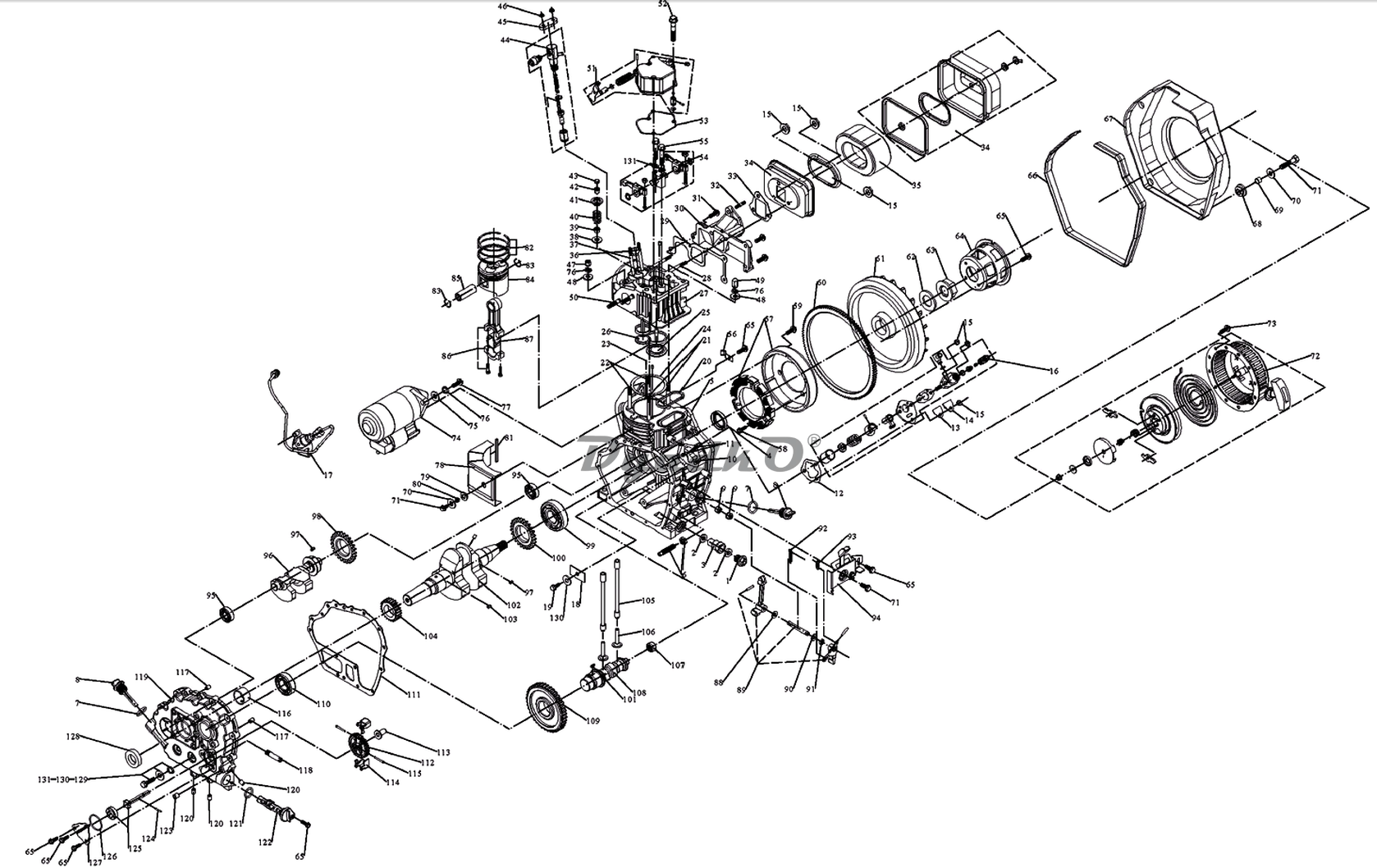

Схема CHAMPION (IGP) DG 6000E-3 Двигатель

1 Oil drain bolt
2 Oil drain bolt washer
3 Oil drain pipe
4 Oil sealing B3550
5 Crankcase
6 Fuel capacity controller
7 О-type ring 26X3.55G
8 Oil distick
9 Needle bearing 7941/8
10 Fuel injection pump studs (short)
11 Fuel injection pump studs (long)
12 Fuel injection pump gasket
13 Fuel injection pump sealing board ga
14 Fuel injection pump sealing beard
15 Tooth flange nut Mb
16 Fuel injection pump assy (used in ger
17 High pressure fuel pipe
18 Thrust pad
19 Bolt M8X12
20 Cylinderhead sealing
21 Cylinderhead studs (long)
22 Cylinderhead studs (short)
23 Pin 4X8
24 Cylinderhead gasket
25 inlet valve
26 Outlet valve
27 Cylinderhead
28 Stud M6X75
29 Inlet gasket
30 Inlet pipe
31 Bolt M6X28
32 Air cleaner bolt
33 Air filter gasket
34 Air filter shell
35 Air filter
36 Insulation cladding
37 Stud M6X55
38 Valve spring washer
39 Oil sealing B0711
40 Volvc spring
41 Valve spring seat
42 Valve lock clamps
43 Valve adjust cushion block
44 Fuel injector
45 Fuel injector platen
46 Nut M6
47 Cylinder head nut (long)
48 Cylinder head nut washer
49 Cylinder head nut (short)
50 Stud M8X20
51 Cylinder head cover
52 Bolt M6X70
53 Cylinder head cover gasket
54 Rocker arm
55 Rocker arm bolt M8X50
56 Wire platen
57 Flywheel generator
58 Screw M6X12
59 Bolt M6X18
60 Flywheel gear
61 Flywheel
62 Flywheel nut washer
63 Flywheel nut
64 Starting flange
65 Bolt M6X12
66 Wind hood shock pad
67 Wind hood (black)
68 Wind hood shockcover
69 Bushing 10x10
70 Washer 6
71 Bolt M6X22
72 Recoil starter assy (black)
73 Bolt M6X8
74 Electronic starter
75 Washer 10
76 Easticity washer 10
77 Bolt M10X35
78 Wind board
79 Wind board shock pad
80 Wind board bushing
81 Wind board shock strip
82 Piston ring set
83 Piston pin circlip 23
84 Piston
85 Piston pin
86 Connect rod assy
87 Connect rod bearing
88 Fork shaft washer 1.5mm
89 Fork assy
90 Fork shaft washer 1.0mm
91 Oil sealing B0814
92 Speed governing spring
93 Reset spring
94 Speed governing assy
95 Bearing 6203
96 Balance shaft
97 Flat key 5X5X7
98 Balance gear
99 Bearing 6308
100 Balance shaft transmission gear
101 Flat key 5X5X14
102 Crankshaft VI
103 Flat key 5X5X12
104 Crankshaft timing gear
105 valve tappet
106 valve lifter
107 bearing 37941/15
108 Camshaft
109 Camshaft timing gear
110 Bearing 6207
111 Crankcase cover gasket
112 Oil pump gear
113 Speed governing push dish
114 Flying hammer
115 Flying hammer pin
116 Sliding bearing
117 Pin8X12
118 Oil absorption pipe
119 Crankcase cover
120 Aluminum end cap ф8
121 0 ring 25x2.4G
122 Oil filter
123 Inside hexagonal screw
124 Pin 4X8 3X16
125 Oil pump
126 0 ring 34.5x1.8G
127 Oil pump cover
128 Oil sealing B3550
129 Bolt M8X38
130 Washer 8
131 Easticity washer 8
