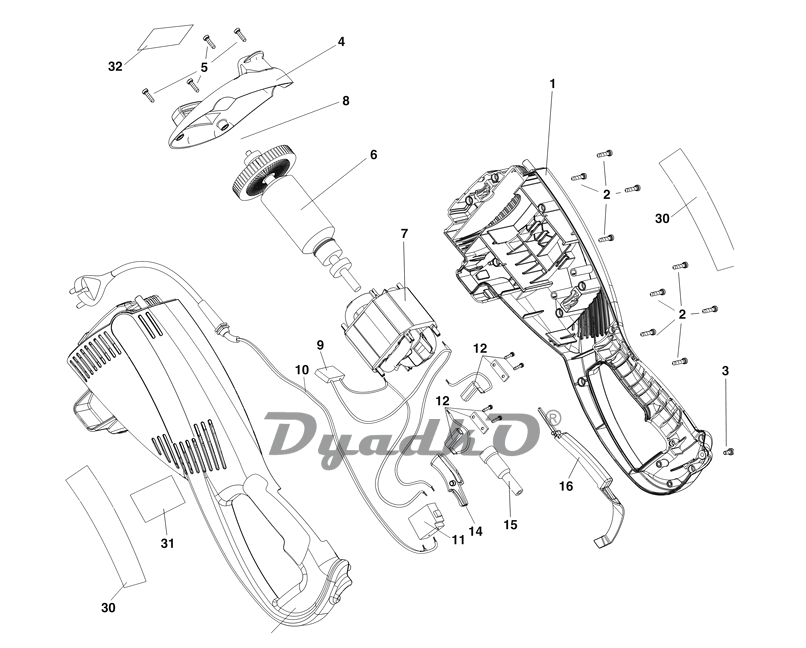

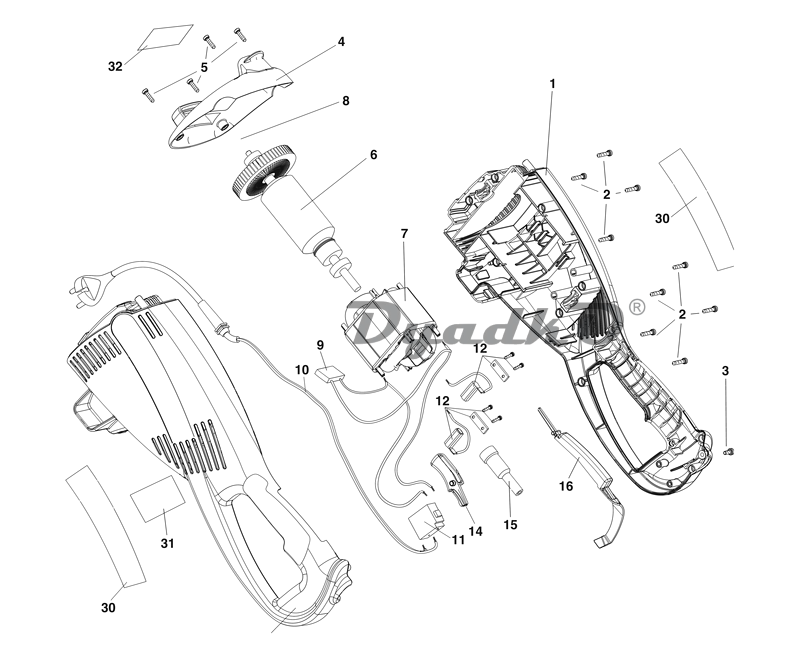

| 1 | Motor case DOLMAR |
| 2 | Screw |
| 3 | Screw |
| 4 | Back cover |
| 5 | Screw |
| 6 | Rotor assy. |
| 7 | Stator assy. |
| 9 | Capacitor |
| 10 | Cable with plug EU |
| 11 | Switch |
| 12 | Carbon brush (2 pcs.) |
| 14 | Power switch |
| 15 | Joint |
| 16 | Catch lever |
| 30 | Label DOLMAR |
| 32 | Label ET-100 C |
| 33 | Safety label |
| 1 | Motor case DOLMAR |
| 2 | Screw |
| 3 | Screw |
| 4 | Back cover |
| 5 | Screw |
| 6 | Rotor assy. |
| 7 | Stator assy. |
| 9 | Capacitor |
| 10 | Cable with plug EU |
| 11 | Switch |
| 12 | Carbon brush (2 pcs.) |
| 14 | Power switch |
| 15 | Joint |
| 16 | Catch lever |
| 30 | Label DOLMAR |
| 32 | Label ET-100 C |
| 33 | Safety label |
