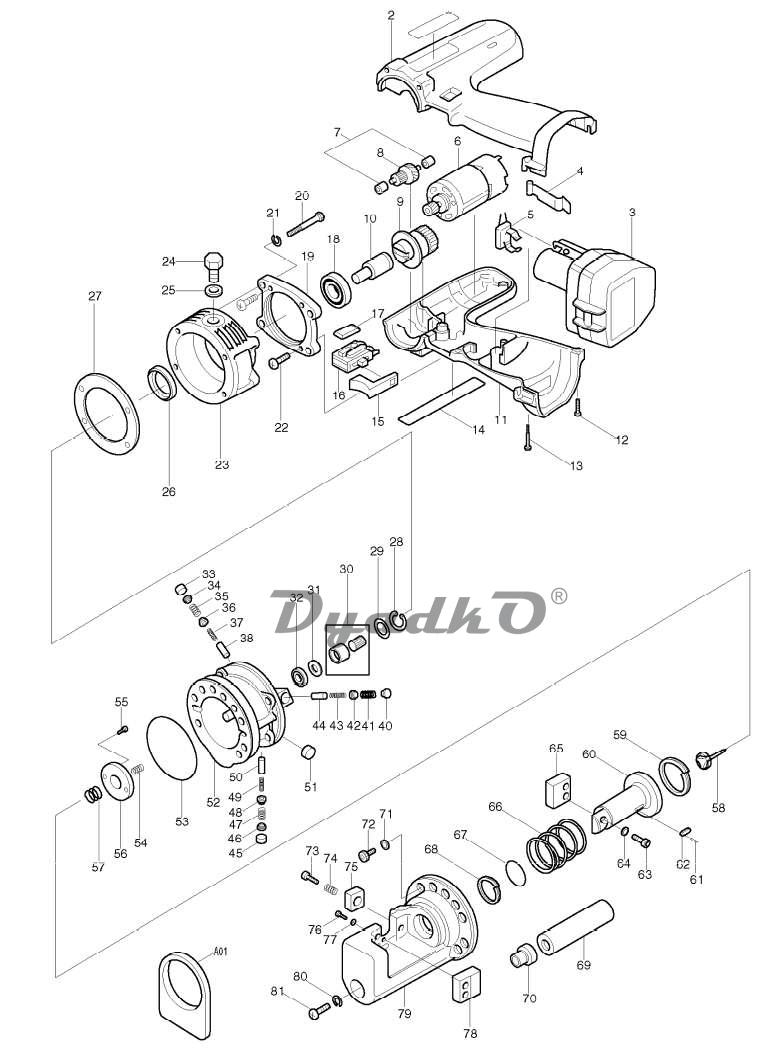

Схема MAKITA SC 130 D

2 HOUSING SET INC. 11
3 BATTERY 1202 SET
4 SET PLATE
5 BATTERY HOLDER
6 DC MOTOR 12V
7 PLANE BEARING 4
8 GEAR COMPLETE 15-38
9 SPINDLE COMPLETE
10 ECCENTRIC SHAFT T45417
11 HOUSING SET INC. 2
12 TAPPING SCREW BT4X20
13 PAN HEAD SCREW M4X20
15 SWITCH LEVER
16 SWITCH
17 COVER
18 BALL BEARING 6002RU
19 INTERMEDIATE HOUSING T45415
20 HEX. SOCKET HEAD BOLT M5X55
21 SPRING WASHER 5
22 TAPPING SCREW BT4X20
23 BEARING HOUSING #T318814
24 HEX. BOLT M10X16
25 SEAL WASHER WF10171.6
26 OIL SEAL MSH15257
27 LINER B #T45464
28 STOP RING H19
29 NEEDLE BEARING HOLDER B T45422
30 NEEDLE BEARING #RNAF81510
31 NEEDLE BEARING HOLDER A T45421
32 BALL BEARING 625ZZ
33 URETHAN PACKING
34 SPRING SUPPORTER
35 SPRING #43449N2
36 CHECK VALVE
37 PISTON RETURN RING
38 PISTON
39 URETHAN PACKING
40 SPRING SUPPORTER
41 SPRING #43449N2
42 CHECK VALVE
43 PISTON RETURN RING
44 PISTON
45 URETHAN PACKING
46 SPRING SUPPORTER
47 SPRING #43449N2
48 CHECK VALVE
49 PISTON RETURN RING
50 PISTON
51 MAGNET
52 CYLINDER
53 O RING S70
54 RELEASE VALVE SPRING
55 HEX. SOCKET HEAD BOLT M4X6
56 STOPPER PLATE #45423
57 SPRING #T45378
58 RELEASE VALVE #T45461
59 PACKING OSI50406
60 CUTTER ROD
61 SPRING PIN 2.5X10
62 KEY T45420
63 HEX. SOCKET HEAD BOLT M5X12
64 FLAT WASHER 5
65 CUTTER BLADE SET INC. 78
66 SPRING #T45424
67 O RING P26-1-B
68 BACK-UP RING P26
69 OIL LEVELER SACK
70 BUSH T43694
71 WASHER 6
72 HEX. SOCKET HEAD BOLT M6X16
73 BOLT #T45452
74 SPRING #T45470
75 STOPPER
76 HEX. SOCKET HEAD BOLT M5X12
77 FLAT WASHER 5
78 CUTTER BLADE SET INC. 65
79 CUTTER HEAD
80 SPRING WASHER 8
81 WOOD SCREW 5X60
A01 BALANCE STAND
A02 BATTERY COVER
A03 PLASTIC CARRYING CASE
A04 INNER FITMENT
A05 WRENCH 17-14
A06 HEX. WRENCH 3
A07 HEX. WRENCH 4
A08 HEX. WRENCH 5
A09 OIL 35CC
B01 DC1209 FAST CHARGER
