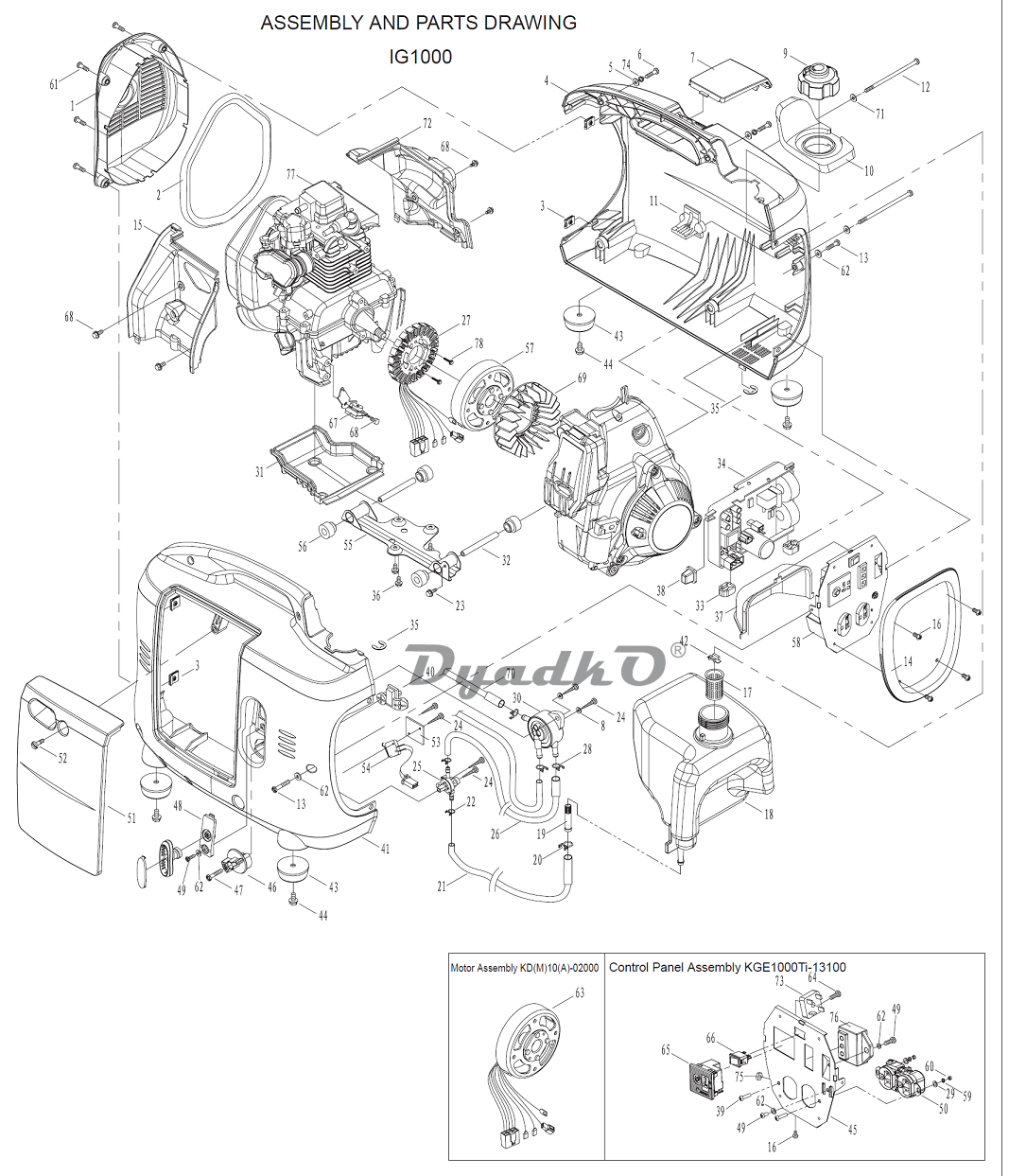

Схема FUBAG TI 1000 (68218) Генератор

1 Rear Cover
2 Seal Strip of Rear Cover
3 Plug-in
4 Right Casing
5 Washer 6
6 H-Type Plus Screw M6X20
7 Right Casing Top Cover
8 Washer 4
9 Fuel Tank Cover
10 Protection Sleeve of Fuel Tank Port
11 Cross Protection Bracket of Right Casing
12 Bolt M6X105
13 H-Type Plus Screw M5X25
14 Front Cover
15 Inlet Side Deflector Subassembly
16 H-Type Plus Screw M5X10
17 Filter Bowl
18 Fuel Tank
19 Strainer
20 Hoop 10
21 Fuel Supplying Pipe
22 Hoop 7
23 Hexagonal Flange Bolt M6X12
24 Plus Self-tapping Screw ST3.8X16-C-H
25 Oil Switch Assembly
26 Fuel Supplying Pipe
27 Stator Assembly
28 Hoop 9
29 Washer 4
30 Fuel Vacuum Pump
31 Deflector of Lower Air Duct
32 Lower Hollow Shaft
33 Module Shock Pad
34 Inverter Module
35 Split Washer 9
36 Hexagonal Flange Bolt M6X16
37 Protection Cover of Electric Parts
38 Rubber Square Protection Bracket
39 H-Type Plus Screw M4X16
40 Cross Protection Bracket of Left Casing
41 Left Casing
42 Oil Indicator
43 Shock Pad of Casing Bottom
44 Hexagonal Flange Bolt M6X12
45 Control Panel
46 Oil Switch Handle
47 Screw
48 Handle Fixed Seat
49 H-Type Plus Screw M5X12
50 А-Type Doublet Receptacle
51 Side Door of Left Casing
52 Screw M6
53 Micro-Active Switch Retainer
54 Micro-Active Switch
55 Engine Fixed Bracket Weldment
56 Lower Shock Insulation Sleeve
57 Rotor Assembly
58 Control Panel Assembly
59 Plastic Washer 4
60 Hexagonal Nut M4
61 Screw M5X16
62 Washer 5
63 Motor Assembly
64 H-Type Plus Screw M5X20
65 DC Receptacle (DC12V 8.3A)
66 Smart Switch
67 Trigger
68 Hexagonal Flange Bolt M5x12
69 Impeller
70 Fuel Supplying Pipe
71 Washer 6
72 Exhaust Side Deflector Subassembly
73 Rectifier
74 Spring Washer 6
75 Hexagonal Nut M5
76 Three-in-One Ignition Controller
77 KG144 Gasoline Engine
78 Hexagonal Flange Bolt M5X25
