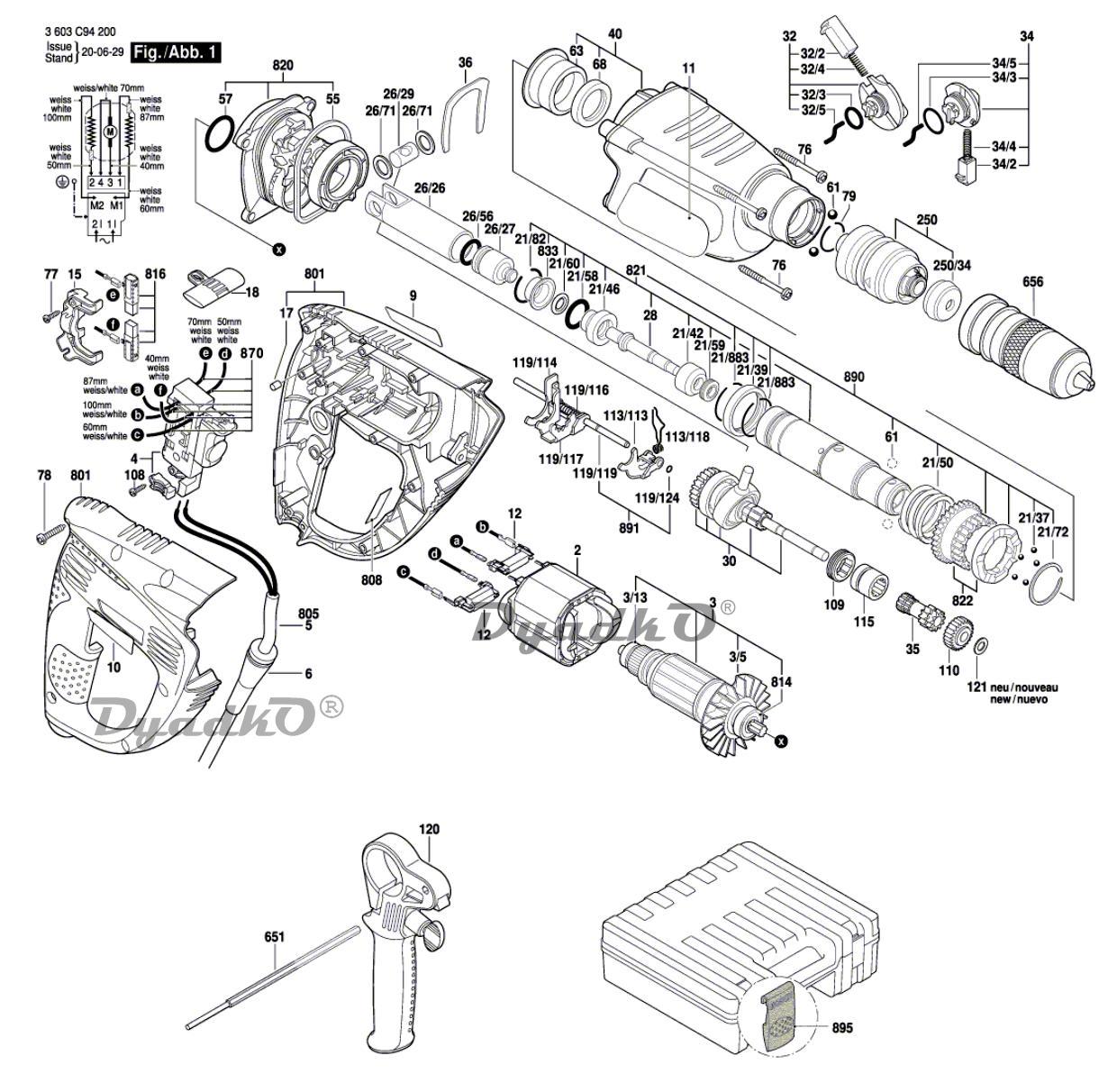

Схема BOSCH PBH 3000-2 FRE PBH 3000-2 FRE (3603C94200)

2 Field 230V
3 Armature 230V
3/13 groove ball bearing 7x19x6
3/5 Fan
4 Switch
6 Grommet Ø7,3-Ø8,6x76 MM
9 Manufacturer's nameplate PBH 3000-2 FRE
10 Manufacturer's nameplate PBH 3000-2 FRE
11 Reference Plate
12 Suppression Filter
15 Bearing Bracket
17 Damping rubber
18 Change-Over Switch
21/37 Ball DIN 5401-4 MM-III-ST
21/39 Friction Washer
21/42 Thrust Ring
21/46 Guide Bushing
21/50 Compression Spring
21/58 O-Ring
21/59 Shaft Seal
21/60 O-Ring 9,0x3,5 MM
21/72 Retaining ring
21/82 Retaining ring
21/883 Retaining ring A22 DIN 7993
26/26 Hammer Piston
26/27 Striker
26/29 Piston Pin
26/56 O-Ring
26/71 Shim washer 1,2 MM THICK
28 Striker Pin
30 Drive bearing
32 Clamp Handle
32/2 Switch Button RED
32/3 O-Ring 12,5x2,5 MM
32/4 Compression Spring
32/5 Driver Pin
34 Clamp Handle
34/2 Switch Button
34/3 O-Ring 17,0x2,0 MM
34/4 Compression Spring
34/5 Driver Pin
35 Gear Sleeve
36 Holding Plate
40 Gear Housing
55 O-Ring
57 O-Ring 24,0x2,5 MM
61 Ball DIN 5401-5,5MM-III-ST
63 Plain bearing
68 Shaft Seal
76 Thread-forming tap. Screw
77 Lens Head Screw 3x10 ST
78 Torx Oval-Head Screw 4x20
79 Retaining ring
109 Switching Element
110 Cylindrical Gear
113/113 Shift Plate
113/118 Switch Spring
115 Switching Element
119/124 Retaining ring
119/114 Shift Plate
119/116 Compression Spring
119/117 Shift Plate
119/119 Guide Rod
120 Auxiliary Handle BLACK
121 Shim
250 Quick-Change Collet Chuck
250/34 Protective Cap
651 Depth-Gauge
656 Keyless Chuck
801 Motor Housing
805 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 Nameplate
814 groove ball bearing 9x24x7
816 Carbon-Brush Set
820 Intermediate Flange
821 Hammer Pipe
822 Clutch Set
833 Holding Jacket
870 Connecting Cable
890 Hammer Pipe
891 Guide Rod
895 Locking Hook
